UF V 系列 | 超低温冰箱 带真空隔热和电机门锁

{:en}[vc_row][vc_column][vc_column_text]Your Location: Main page > Equipment > Freezer[/vc_column_text][/vc_column][/vc_row][vc_row full_height="yes" columns_placement="top"][vc_column width="1/4"][vc_images_carousel images="4012,4010,4009,4011" img_size="full" autoplay="yes" wrap="yes" title="UFV SERIES"][/vc_column][vc_column width="3/4"][vc_column_text] The BINDER ultra low temperature freezer ensures the safe storage of samples at -80 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

Important characteristics

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
UF V 500	477	826 x 1966 x 938	606 x 1300 x 605
UF V 700	700	1110 x 1966 x 938	890 x 1300 x 605

[/vc_column_text][vc_tta_tabs][vc_tta_section title="Technical Data - UFV 500" tab_id="UFV500"][vc_column_text]

Designation	UFV500-230V
Option model	Standard
Order number	9020-0347
Measures
Interior volume [L]	477
Net weight of the unit (empty) [kg]	247
permitted load [kg]	200
Permitted load of individual compartment [kg]	50
Doors
Unit doors	1
Internal Dimensions
Width [mm]	606
Height [mm]	1300
Depth [mm]	605
Outer dimensions
Width net [mm]	826
Height net [mm]	1966
Depth net [mm]	938
Wall clearance sidewise [mm]	250
Wall clearance back [mm]	100
Environment-specific data
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	7.9
Sound-pressure level [dB(A)]	47
Fixtures
Number of shelves (std./max.)	Mar-13
Load-variants
Freezer racks per compartment	4
Cryoboxes, 50 mm	352
Performance Data Temperature
Temperature range [°C]	-86…-40
Temperature variation at -80 °C [± K]	2.5
Cooling down time from 22 °C to -80 °C [min]	360
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	230
Electrical data
Rated Voltage [V]	230
Power frequency [Hz]	50
Nominal power [kW]	1.6
Unit fuse [A]	10
Phase (Nominal voltage)	1~

[/vc_column_text][/vc_tta_section][vc_tta_section title="Technical Data - UFV 700" tab_id="UFV700"][vc_column_text]

Designation	UFV700-230V¹
Option model	Standard
Order number	9020-0348
Measures
Interior volume [L]	700
Net weight of the unit (empty) [kg]	288
permitted load [kg]	200
Permitted load of individual compartment [kg]	50
Doors
Unit doors	1
Internal Dimensions
Width [mm]	890
Height [mm]	1300
Depth [mm]	605
Outer dimensions
Width net [mm]	1110
Height net [mm]	1966
Depth net [mm]	938
Wall clearance sidewise [mm]	250
Wall clearance back [mm]	100
Environment-specific data
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	8.1
Average heat dissipation at set-point -80 °C and ambient temperature = 21 °C [W]	340
Sound-pressure level [dB(A)]	47
Fixtures
Number of shelves (std./max.)	Mar-13
Load-variants
Freezer racks per compartment	6
Cryoboxes, 50 mm	528
Performance Data Temperature
Temperature range [°C]	-86…-40
Temperature variation at -80 °C [± K]	2.5
Temperature fluctuation at -80 °C [± K]	1.5
Cooling down time from 22 °C to -80 °C [min]	450
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	250
Electrical data
Rated Voltage [V]	230
Power frequency [Hz]	50
Nominal power [kW]	1.6
Unit fuse [A]	10
Phase (Nominal voltage)	1~

[/vc_column_text][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
UF V 500	483	830x1985x885	619x1300x600
UF V 700	711	1120x1985x885	911x1300x600

{:}

Series ED-S | Drying and heating chambers Solid.Line with natural convection

[vc_row][vc_column][vc_column_text] The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text][/vc_column_text][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text].

Important characteristics

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Model	Housing Dimensions (excluding fittings and connections) W x H x D (mm)	Internal Dimensions W x H x D (mm)	Net weight (kg)	Interior volume (L)
ED-S 56	590 x 580 x 515	400 x 440 x 350	41	62
ED-S 115	740 x 790 x 555	550 x 550 x 390	57	118

． [/vc_column_text][/vc_column][/vc_row]

Series FD-S | Drying and heating chambers Solid.Line with forced convection

[vc_row][vc_column][vc_column_text] The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text][/vc_column_text][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text].

Important characteristics

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Model	Housing Dimensions (excluding fittings and connections) W x H x D (mm)	Internal Dimensions W x H x D (mm)	Net weight (kg)	Interior volume (L)
FD-S 56	590 x 580 x 515	400 x 440 x 350	41	55
FD-S 115	740 x 790 x 555	550 x 550 x 390	57	106

[/vc_column_text][/vc_column][/vc_row]

MKFT 系列 | 高低温交变气候箱 用于温度快速变化并带有湿度控制和超低温

{:en}

Special features

• Temperature range: -70 °C to 180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters
• 4 zero-voltage relay contacts that can be activated via MCS controller
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
MKFT 115	115	980x1725x865	600x480x400
MKFT 240	228	1115x1940x925	735x700x443
MKFT 720	734	1580x2005x1140	1200x1020x600

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
MKFT 115	115	980x1725x865	600x480x400
MKFT 240	228	1115x1940x925	735x700x443
MKFT 720	734	1580x2005x1140	1200x1020x600

{:}

MKT 系列 | 高低温交变气候箱 用于温度快速变化并带有超低温

{:en}

Special features

• Temperature range: -70 °C to 180 °C
• 4 zero-voltage relay contacts that can be activated via MCS controller
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
MKT 115	115	980x1725x865	600x480x400
MKT 240	228	1115x1940x925	735x700x443
MKT 720	734	1580x2005x1140	1200x1020x600

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
MKT 115	115	980x1725x865	600x480x400
MKT 240	228	1115x1940x925	735x700x443
MKT 720	734	1580x2005x1140	1200x1020x600

{:}

MKF 系列 | 高低温交变气候箱 用于温度快速变化并带有湿度控制

{:en} Special features

• Temperature range: -40 °C to 180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts that can be activated via MCS controller
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
MKF 56	60	732x1445x832	400x420x348
MKF 115	115	980x1725x865	600x480x400
MKF 240	228	1115x1715x925	735x700x443
MKF 720	734	1580x2005x1140	1200x1020x600

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
MKF 56	60	732x1445x832	400x420x348
MKF 115	115	980x1725x865	600x480x400
MKF 240	228	1115x1715x925	735x700x443
MKF 720	734	1580x2005x1140	1200x1020x600

{:}

MK 系列 | 高低温交变气候箱 用于温度快速变化

{:en} Special features

• Temperature range: -40 °C to 180 °C
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
MK 56	60	740x1225x740	402x402x330
MK 115	115	980x1725x865	600x480x400
MK 240	228	1115x1715x925	735x700x443
MK 720	734	1580x2005x1140	1200x1020x600

{:}{:zh}

重要特性

可选容面

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
MK 56	60	740x1225x740	402x402x330
MK 115	115	980x1725x865	600x480x400
MK 240	228	1115x1715x925	735x700x443
MK 720	734	1580x2005x1140	1200x1020x600

{:}

KBWF 系列 | 生长箱 带光照及湿度调节功能

{:en}

Special features

• Temperature range: 0 °C to 70 °C
• Humidity range: 10 % to 80 % RH
• Humidity regulation with capacitative humidity sensor and vapor humidification
• Positionable illumination cassettes, each with 5 fluorescent tubes
• Intuitive touchscreen controller with time-segment and real-time programming
• Door heating

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KBWF 240	247	925x1465x800	650x785x485
KBWF 720	700	1250x1925x890	973x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
KBWF 240	247	925x1465x800	650x785x485
KBWF 720	700	1250x1925x890	973x1250x576

{:}

KBW 系列 | 生长箱 带光照功能

{:en}

Special features

• Temperature range: 0 °C to 70 °C
• Positionable illumination cassettes, each with 5 fluorescent tubes
• Intuitive touchscreen controller with time-segment and real-time programming
• Door heating

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KBW 240	247	925x1465x800	650x785x485
KBW 400	400	925x1950x805	650x1270x485
KBW 720	698	1250x1925x890	970x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
KBW 240	247	925x1465x800	650x785x485
KBW 400	400	925x1950x805	650x1270x485
KBW 720	698	1250x1925x890	970x1250x576

{:}

KMF 系列 | 恒温恒湿箱 扩大的温度/湿度范围

{:en} Special features

• Temperature range: -10 °C to 100 °C
• Humidity range: 10 % to 98 % RH
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Inner chamber made of stainless steel
• Intuitive touchscreen controller with time-segment and real-time programming

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KMF 115	102	880x1050x650	600x483x351
KMF 240	247	930x1465x800	650x785x485
KMF 720	700	1250x1925x890	973x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
KMF 115	102	880x1050x650	600x483x351
KMF 240	247	930x1465x800	650x785x485
KMF 720	700	1250x1925x890	973x1250x576

{:}

KBF LQC 系列 | 恒温恒湿箱 带符合 ICH 要求的光照和光剂量控制

{:en} Special features

• Temperature range: 0 °C to 70 °C
• Humidity range: 10 % to 80 % RH
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Illumination cassettes with ICH-compliant UV/Vis light source
• Independent light-dose control of UV-A and visible light with spherical sensors
• Intuitive touchscreen controller with time-segment and real-time programming

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KBF LQC 240	247	925x1460x800	650x785x485
KBF LQC 720	700	1250x1925x890	973x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
KBF LQC 240	247	925x1460x800	650x785x485
KBF LQC 720	700	1250x1925x890	973x1250x576

{:}

KBF P 系列 | 恒温恒湿箱 带符合 ICH 要求的光照

{:en}

Special features

• Temperature range: 0 °C to 70 °C
• Humidity range: 10 % to 80 % RH
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Illumination cassettes with ICH-compliant UV/Vis light source
• Intuitive touchscreen controller with time-segment and real-time programming

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KBF P 240	247	925x1460x800	650x785x485
KBF P 720	700	1250x1925x890	973x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
KBF P 240	247	925x1460x800	650x785x485
KBF P 720	700	1250x1925x890	973x1250x576

{:}

KBF 系列 | 恒温恒湿箱 温度/湿度范围大

{:en}

Special features

• Temperature range: 0 °C to 70 °C
• Humidity range: 10 % to 80 % RH
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Intuitive touchscreen controller with time-segment and real-time programming
• Inner chamber made of stainless steel

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KBF 115	102	880x1050x650	600x483x351
KBF 240	247	925x1460x800	650x785x485
KBF 720	700	1250x1925x890	973x1250x576
KBF 1020	1020	1250x1925x1145	976x1250x836

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
KBF 115	102	880x1050x650	600x483x351
KBF 240	247	925x1460x800	650x785x485
KBF 720	700	1250x1925x890	973x1250x576
KBF 1020	1020	1250x1925x1145	976x1250x836

{:}

VDL系列 | 真空干燥箱 用于可燃溶剂

{:en}

Special features

• Temperature range: room temperature plus 15 °C to 200 °C
• Controller with time-segment and real-time programming
• 2 aluminum expansion racks
• Inert gas connection
• Shatterproof, spring-mounted safety glass panel
• Expanded safety functions

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
VDL 23	23	515x655x500	285x285x295
VDL 53	53	635x775x545	400x400x340
VDL 115	115	740x900x670	506x506x460

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
VDL 23	23	515x655x500	285x285x295
VDL 53	53	635x775x545	400x400x340
VDL 115	115	740x900x670	506x506x460

{:}

VD系列 | 真空干燥箱 适用不易燃溶剂

{:en}

Special features

• Temperature range: room temperature plus 15 °C to 200 °C
• Controller with time-segment and real-time programming
• 2 aluminum expansion racks
• Inert gas connection
• Shatterproof, spring-mounted safety glass panel

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
VD 23	23	515x665x500	285x285x295
VD 53	53	635x775x550	400x400x340
VD 115	115	740x900x670	506x506x460

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
VD 23	23	515x665x500	285x285x295
VD 53	53	635x775x550	400x400x340
VD 115	115	740x900x670	506x506x460

{:}

FDL系列 | 安全干燥箱 针对受限的溶剂量

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 300 °C
• Controller with time-segment and real-time programming
• Fresh-air monitoring with audible and visual alarm and automatic deactivation of heating
• Replaceable filter cartridge, Class M6
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: RS 422

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FDL 115	115	830x805x685	600x435x435

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
FDL 115	115	830x805x685	600x435x435

{:}

M 系列 | 干燥箱和烘箱 Classic.Line 带循环空气和多种程序功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 300 °C
• Adjustable fan speed
• Program-controlled ventilation flap
• Color LCD controller with time-segment programming
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: RS 422

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
M 53	53	635x780x575	400x400x340
M 115	115	835x865x645	600x480x410
M 240	240	1035x985x745	800x600x510
M 400	400	1235x1190x795	1000x800x510
M 720	720	1235x1690x865	1000x1200x610

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
M 53	53	635x780x575	400x400x340
M 115	115	835x865x645	600x480x410
M 240	240	1035x985x745	800x600x510
M 400	400	1235x1190x795	1000x800x510
M 720	720	1235x1690x865	1000x1200x610

{:}

FP 系列 | 干燥箱和烘箱 Classic.Line 带循环空气和程序功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 300 °C
• Adjustable fan speed
• Adjustable exhaust air flap
• Controller with time-segment and real-time programming
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: RS 422

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FP 53	53	635x620x575	400x400x340
FP 115	115	835x705x645	600x480x410
FP 240	240	1035x825x745	800x600x510
FP 400	400	1235x1025x765	1000x800x510
FP 720	720	1235x1530x865	1000x1200x610

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
FP 53	53	635x620x575	400x400x340
FP 115	115	835x705x645	600x480x410
FP 240	240	1035x825x745	800x600x510
FP 400	400	1235x1025x765	1000x800x510
FP 720	720	1235x1530x865	1000x1200x610

{:}

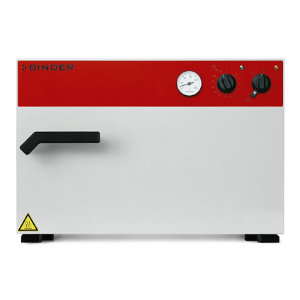

E 系列 | 干燥箱和烘箱 Classic.Line 带机械调整

{:en}

Special features

• Temperature range: 60 °C to 230 °C
• Adjustable exhaust air flap
• Hydro-mechanical thermostat
• Class 1 temperature limitation device (Model E028-230V-T)
• Timer 0 – 120 min

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
E 28	28	580x405x425	400x280x250

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
E 28	28	580x405x425	400x280x250

{:}

FED 系列 | 干燥箱和烘箱 Classic.Line 带循环空气和时间功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 300 °C
• Adjustable fan speed
• Adjustable exhaust air flap
• Controller with expanded timer functions
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: RS 422

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FED 400	400	1235x1025x765	1000x800x510

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
FED 400	400	1235x1025x765	1000x800x510

{:}

FED 系列 | 干燥箱和烘箱 Avantgarde.Line 利用循环空气和时间功能

{:en}

Special features

• Temperature range: ambient temperature plus 10 °C to 300 °C
• Adjustable fan speed
• Controller with LCD display and enhanced time functions
• Electromechanical control of the exhaust air flap
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ethernet interface
• Up to 30% lower energy consumption compared to conventional units on the market

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FED 56	60	560x625x565	400x440x345
FED 115	116	710x735x605	550x550x385
FED 260	259	810x965x760	650x780x515
FED 720	741	1165x1590x870	1000x1300x570

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
FED 56	60	560x625x565	400x440x345
FED 115	116	710x735x605	550x550x385
FED 260	259	810x965x760	650x780x515
FED 720	741	1165x1590x870	1000x1300x570

{:}

FD 系列 | 干燥箱和烘箱 Classic.Line 带强制对流

{:en}[vc_row][vc_column width="2/3"][vc_column_text]

Important characteristics

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FD 23	20	435x495x520	222x330x300

[/vc_column_text][/vc_column][vc_column width="1/3"][vc_single_image image="973" img_size="full"][/vc_column][/vc_row]{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
FD 23	20	435x495x520	222x330x300

{:}

FD 系列 | 干燥箱和烘箱 Avantgarde.Line 带强制对流

{:en}

Special features

• Temperature range: ambient temperature plus 10 °C to 300 °C
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Excellent temporal and spatial temperature accuracy
• Up to 30% lower energy consumption compared to conventional units on the market

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
FD 56	60	560x625x565	400x440x345
FD 115	116	710x735x605	550x550x385
FD 260	259	810x965x760	650x780x515
FD 720	741	1165x1590x870	1000x1300x570

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 ( mm)
FD 56	60	560x625x565	400x440x345
FD 115	116	710x735x605	550x550x385
FD 260	259	810x965x760	650x780x515
FD 720	741	1165x1590x870	1000x1300x570

{:}

ED 系列 | 干燥箱和烘箱 Classic.Line 带自由对流功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 300 °C
• Natural convection
• Adjustable exhaust air flap
• Controller with timer functions
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
ED 23	20	435x495x520	222x330x300
ED 400	400	1235x1025x765	1000x800x520

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
ED 23	20	435x495x520	222x330x300
ED 400	400	1235x1025x765	1000x800x520

{:}

ED 系列 | 干燥箱和烘箱 Avantgarde.Line 带自由对流功能

{:en}

Special features

• Temperature range: ambient temperature plus 5 °C to 300 °C
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Excellent temporal and spatial temperature accuracy
• Up to 30% lower energy consumption compared to conventional units on the market

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
ED 56	57	560x625x565	360x420x380
ED 115	114	710x735x605	510x530x425
ED 260	255	810x965x760	610x760x550
ED 720	743	1165x1590x870	960x1280x605

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
ED 56	57	560x625x565	360x420x380
ED 115	114	710x735x605	510x530x425
ED 260	255	810x965x760	610x760x550
ED 720	743	1165x1590x870	960x1280x605

{:}

KB 系列 | 低温培养箱 利用压缩机技术

{:en}

Special features

• Temperature range:
  • -5 °C to 100 °C (except KB23)
  • 0°C to 100 °C (KB23 only)
• Up to 30% lower energy consumption compared to the previous model
• Cooling with compressor cooling unit
• Adjustable fan speed
• Controller with time-segment and real-time programming
• Inner door made of tempered safety glass

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KB 23	20	435x620x520	222x330x277
KB 53	53	635x835x580	400x400x330
KB 115	115	835x1025x650	600x480x400
KB 240	247	925x1465x800	650x785x485
KB 400	400	925x1950x805	650x1270x485
KB 720	698	1250x1925x885	970x1250x576

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
KB 23	20	435x620x520	222x330x277
KB 53	53	635x835x580	400x400x330
KB 115	115	835x1025x650	600x480x400
KB 240	247	925x1465x800	650x785x485
KB 400	400	925x1950x805	650x1270x485
KB 720	698	1250x1925x885	970x1250x576

{:}

KT 系列 | 低温培养箱 利用帕尔贴技术

{:en}

Special features

• Temperature range: 4 °C to 100 °C
• Electric cooling with Peltier module
• Adjustable fan speed
• Controller with time-segment and real-time programming
• Inner door made of tempered safety glass
• Data recording and USB interface

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
KT 53	53	660x635x630	400x400x334
KT 115	102	860x715x655	600x455x355
KT 170	163	860x1025x655	600x765x355

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
KT 53	53	660x635x630	400x400x334
KT 115	102	860x715x655	600x455x355
KT 170	163	860x1025x655	600x765x355

{:}

B 系列 | 培养箱 Classic.Line 利用机械调整

{:en}

Special features

• Temperature range: 30 °C to 70 °C
• Hydro-mechanical thermostat
• Inner door made of tempered safety glass

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
B 28	28	580x405x425	400x280x250

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
B 28	28	580x405x425	400x280x250

{:}

BF 系列 | 培养箱 Classic.Line 带循环空气功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 100 °C
• Adjustable fan speed
• Adjustable exhaust air flap
• Controller with timer functions
• Inner door made of tempered safety glass
• Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
BF 400	400	1235x1025x765	1000x800x500

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
BF 400	400	1235x1025x765	1000x800x500

{:}

BF 系列 | 培养箱 Avantgarde.Line 利用循环空气

{:en}

Special features

• Temperature range (model 56 | 260): ambient temperature plus 7 °C to 100 °C
• Temperature range (model 115): ambient temperature plus 8 °C to 100 °C
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Excellent temporal and spatial temperature accuracy and high energy efficiency

[/vc_column_text][vc_column_text]

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
BF 56	59	560x625x565	400x440x340
BF 115	114	710x735x605	510x550x380
BF 260	257	810x965x760	650x780x510
BF 720	734	1165x1590x870	1000x1300x565

[/vc_column_text][/vc_column][/vc_row]{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
BF 56	59	560x625x565	400x440x340
BF 115	114	710x735x605	510x550x380
BF 260	257	810x965x760	650x780x510
BF 720	734	1165x1590x870	1000x1300x565

[/vc_column_text][/vc_column][/vc_row]{:}

BD 系列 | 培养箱 Classic.Line 带自由对流功能

{:en}

Special features

• Temperature range: room temperature plus 5 °C to 100 °C
• natural convection
• Adjustable exhaust air flap
• Controller with timer functions
• Inner door made of tempered safety glass
• Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
BD 23	20	435x495x520	222x330x277
BD 400	400	1235x1025x765	1000x800x500

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
BD 23	20	435x495x520	222x330x277
BD 400	400	1235x1025x765	1000x800x500

{:}

BD 系列 | 培养箱 Avantgarde.Line 带自由对流功能

{:en}

Special features

• Temperature range: ambient temperature plus 5 °C to 100 °C
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Excellent temporal and spatial temperature accuracy and high energy efficiency

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
BD 56	57	560x625x565	360x420x380
BD 115	112	710x735x605	510x530x420
BD 260	253	810x965x760	610x760x545
BD 720	737	1165x1590x870	960x1280x600

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
BD 56	57	560x625x565	360x420x380
BD 115	112	710x735x605	510x530x420
BD 260	253	810x965x760	610x760x545
BD 720	737	1165x1590x870	960x1280x600

{:}

CB 系列 | CO₂ 培养箱 带热空气消毒功能和可高温消毒的 CO₂ 传感器

{:en}[vc_row][vc_column][vc_column_text] The BINDER CB series CO₂ incubator is the premium class among the CO₂ incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth. A BINDER CB series CO₂ incubator can perform complex cultivation experiments as well as specific enviromental conditions.

CO₂ incubators with hot air sterilization and heat sterilizable CO₂ sensor

The Binder CB series is a world first! Fitted with a sterilizable CO₂ sensor, the incubator meets the highest of standards when it comes to sample safety and cell growth. While C series CO₂ incubators have been designed with standard laboratory applications in mind, the BINDER CB comes highly recommended for the incubation of delicate cells, providing optimum growth conditions for cell cultures. Just like the C series units, the CO₂ incubators in the CB series have the option of automatic sterilization with hot air at 180 °C. Plus, they have a heat sterilizable CO₂ sensor with infrared technology and come with a double-pan humidification system with condensation protection. The units feature tightly sealed inner doors made of tempered safety glass and a lockable door handle, guaranteeing maximum safety conditions for work in the laboratory.

CO₂ incubators with a patented humidity management system

CB series CO₂ incubators have a patented humidity management system. The Permadry double-pan humidity system provides active humidity limitation that keeps even the interior walls dry. What's more, evaporation is kept to a minimum thanks to the high humidity. These CO₂ incubators are incredibly user-friendly, with the option to control all of the key parameters at once using the operating panel. Measured values are recorded continually and can be exported as data sets with ease via USB. Navigation is straightforward and intuitive. The CO₂ incubators with hot air sterilization and heat sterilizable CO₂ sensor are ideal for the incubation of delicate cells, guaranteeing optimum conditions for cell cultures along with high levels of safety and usability.[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text][/vc_column_text][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]

Important characteristics

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Model	Housing Dimensions (excluding fittings and connections) W x H x D (mm)	Internal Dimensions W x H x D (mm)	Net weight (kg)	Interior volume (L)
CB 60	580 x 720 x 545	400 x 400 x 330	68	53
CB 170 (new)	680 x 870 x 715	560 x 600 x 505	95	170
CB 220	740 x 1070 x 715	560 x 750 x 500	132	210

>> Stacking options for BINDER CO₂ incubators [/vc_column_text][/vc_column][/vc_row]{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
CB 60	53	580x720x545	400x400x330
CB 160	150	680x920x715	500x600x500
CB 220	210	740x1070x715	560x750x500

{:}{:tw}

重要特性

• 溫度範圍：環境溫度加上 7 °C 至 60 °C
• 濕度範圍：最高達 95% 相對濕度
• 可選 O₂ 調節範圍：2-20 Vol.-% O₂ 或 10-95 Vol.-% O₂ （版本 O、GO）
• 通過 180 °C 的熱風進行自動滅菌
• 帶冷凝保護的培養皿加濕系統
• 帶有文丘裡效應的 CO₂ 混合氣體噴嘴
• 可用熱風滅菌的採用紅外線技術的 CO₂ 感測器
• 通過 LCD 彩色顯示器進行顯示
• 可鎖閉的門把手
• 由安全玻璃 (ESG) 製成的密封內門
• 由不銹鋼製成的無縫拉深的內腔
• 由不銹鋼製成的 2/3 個打孔擱板
• 利用堆疊適配器可堆疊設備
• 採用光學和聲音報警的故障診斷系統
• 電腦介面：乙太網
• 內部測量值記錄和 USB 介面

Available Sizes

型號	內部容積 [L]	包括加裝件和連接件的外殼尺寸 寬 x 高 x 深 [mm]	內部尺寸 寬 x 高 x 深 [mm]
CB 60	53	580x720x545	400x400x330
CB 160	150	680x920x715	500x600x500
CB 220	210	740x1070x715	560x750x500

{:}

Series C | CO2 incubators with hot air sterilization

{:en}

Special features

• Temperature range: room temperature plus 7 °C to 50 °C
• Humidity range: up to 95 % RH
• Auto-sterilization with hot air at 180 °C
• Humidification system with condensation protection
• CO₂ gas-mixing jet with Venturi effect
• CO₂ sensor with infrared technology
• Display with 3-digit, 7-segment LEDs
• Door hinged right or left
• Tightly-sealed inner door made of tempered safety glass
• Seamless, deep-drawn inner stainless steel chamber
• 3 perforated stainless steel shelves
• Units are stackable with stacking adapter
• Troubleshooting system with visual and audible alarms
• Zero-voltage alarm contact

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
C 170	168	740x870x715	560x600x500

{:}{:zh}

重要特性

可选容积

型号	内部容积 [L]	外壳尺寸 宽 x 高 x 深 (mm)	内部尺寸 宽 x 高 x 深 (mm)
C 170	168	740x870x715	560x600x500

{:}{:tw}

重要特性

• 溫度範圍：環境溫度加上 7 °C 至 50 °C
• 濕度範圍：最高達 95% 相對濕度
• 通過 180 °C 的熱風進行自動滅菌
• 帶冷凝保護的加濕系統
• 帶有文丘裡效應的 CO₂ 混合氣體噴嘴
• 採用紅外線技術的 CO₂ 感測器
• 通過 3 位元 7 段 LED 顯示
• 帶右側或左側限位器的門
• 由安全玻璃 (ESG) 製成的密封內門
• 由不銹鋼製成的無縫拉深的內腔
• 由不銹鋼製成的 3 個打孔擱板
• 帶堆疊適配器的可堆疊設備
• 採用光學和聲音報警的故障診斷系統

Available Sizes

Model	Interior Volume [L]	Outer Dimensions WxHxD mm	Internal Dimensions WxHxD mm
C 170	168	740x870x715	560x600x500

{:}

KBF1020-Large Scale Climatic Chamber

{:en}

• Internal volume: 1020L
• Temperature range: 0 °C to 70 °C
• Humidity range: 10 % to 80 % RH
• line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Tight-sealing inner door made of safety glass (ESG)
• Inner chamber made of stainless steel
• Door heating

Website: https://www.binder-world.com/en/Products/Constant-climate-chambers/Series-KBF/KBF-1020{:}{:zh}

重要特性

{:}
