DURAN® Laboratory Bottle GL45/GL32/GL25
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Laboratory Bottle GL45/GL32/GL25[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

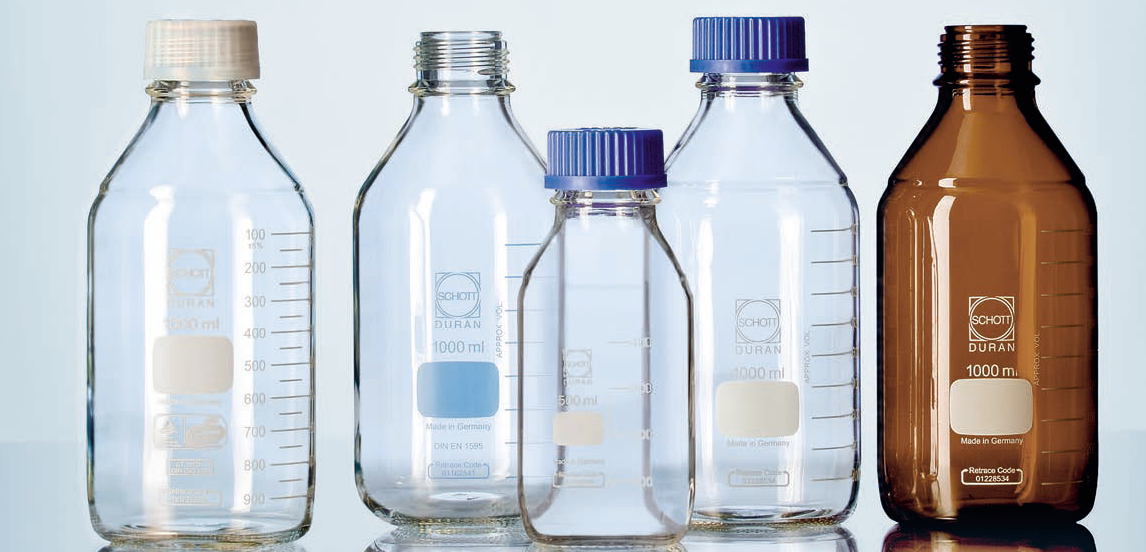

DURAN® LABORATORY GLASS BOTTLES GL45/GL32/GL25:
THOROUGHLY PROVEN – UNIVERSALLY APPLICABLE
[/vc_column_text][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]DURAN® laboratory glass bottles impress because of their outstanding properties. In more than forty years of production, the bottles have been consistently developed and improved. Thanks to this experience, the DURAN GROUP offers quality that remains unmatched.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text]With numerous variants and the comprehensive original equipment from DURAN®, a broad range of high-quality products and systems is available, permitting almost unlimited applications.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
[/vc_column_text][vc_column_text]
The advantages at a glance
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Standardised GL-thread and matching cap systems –
for particularly tight sealing and simple, clean pouring out
Outstanding chemical resistance and near inert behaviour –
no interfering ion exchange
High temperature and thermal shock resistance –
ideal for autoclaving and dry sterilising[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Sturdy design and uniform wall thickness distribution –
for improved safety and longer service life
Transparent –
contents and volume can be quickly checked
Glass Type 1 (neutral glass) conforming toUSP/EP –
especially suited to applications in the pharmaceutical and food industries[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Very steady –
due to large base
Easy labelling –
thanks to large labelling field
Practicality –
easy to read, permanent graduations[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Retrace Code
Using the eight-character Retrace Code and the corresponding article number, the batch and quality certificate for every DURAN® laboratory glass bottle can be obtained at www.dwk-lifesciences.com/DURAN/retracecode or contact our sales people.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="3048" img_size="300x300"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Ordering Information
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Original" tab_id="Original"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Original Laboratory Bottle
with DIN thread
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. With proven DURAN® properties. Complete with blue screw cap (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature level of screw cap and pouring ring: + 140 °C.
Typical applications: storage, sample preparation, transport. Autoclaving media.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Remarks | Pack Unit |
| with screw cap and pouring ring from PP (blue) | ||||||
| 218010851 | 10 | 25 | 36 | 54 | Acceptance within ISO 4796 standard has been requested. With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218011453 | 25 | 25 | 36 | 74 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218011753 | 50 | 32 | 46 | 91 | 10 | |
| 218012458 | 100 | 45 | 56 | 105 | 10 | |
| 218012955 | 150 | 45 | 62 | 115 | 10 | |
| 218013651 | 250 | 45 | 70 | 143 | 10 | |
| 218014459 | 500 | 45 | 86 | 181 | 10 | |
| 218015155 | 750 | 45 | 95 | 208 | 10 | |
| 218015455 | 1000 | 45 | 101 | 230 | 10 | |
| 218016357 | 2000 | 45 | 136 | 265 | 10 | |
| 218016957 | 3500 | 45 | 160 | 300 | 1 | |
| 218017353 | 5000 | 45 | 182 | 335 | 1 | |
| 218018658 | 10000 | 45 | 227 | 415 | 1 | |
| 218018855 | 15000 | 45 | 268 | 450 | 1 | |
| 218019157 | 20000 | 45 | 288 | 510 | 1 | |
| 218019251 | 25000 | 45 | 316 | 545 | 1 | |
| without screw cap and pouring ring | ||||||
| 218010802 | 10 | 25 | 36 | 50 | Acceptance within ISO 4796 standard has been requested. With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218011404 | 25 | 25 | 36 | 70 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218011704 | 50 | 32 | 46 | 87 | 10 | |
| 218012409 | 100 | 45 | 56 | 100 | 10 | |
| 218012906 | 150 | 45 | 62 | 110 | 10 | |
| 218013602 | 250 | 45 | 70 | 138 | 10 | |
| 218014401 | 500 | 45 | 86 | 176 | 10 | |
| 218015106 | 750 | 45 | 95 | 203 | 10 | |
| 218015406 | 1000 | 45 | 101 | 225 | 10 | |
| 218016308 | 2000 | 45 | 136 | 260 | 10 | |
| 218016908 | 3500 | 45 | 160 | 295 | 1 | |
| 218017304 | 5000 | 45 | 182 | 330 | 1 | |
| 218018609 | 10000 | 45 | 227 | 410 | 1 | |
| 218018806 | 15000 | 45 | 268 | 445 | 1 | |
| 218019108 | 20000 | 45 | 288 | 505 | 1 | |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Original GL 45 Laboratory Bottles complete with High Temperature Closures
with DIN Thread, clear, graduated
DURAN® original GL 45 Laboratory Bottles are available complete with high temperature screw caps and pouring rings. The PBT cap and ETFE pouring rings offer greater thermal and chemical resistance than the equivalent polypropylene components.
Typical applications: Dry heat sterilization, autoclaving of liquid media, storage of corrosive reagents and sampling.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| With high temperature screw cap and ETFE pouring ring | |||||
| 218012417 | 100 | 45 | 56 | 105 | 10 |
| 218013619 | 250 | 45 | 70 | 143 | 10 |
| 218014418 | 500 | 45 | 86 | 181 | 10 |
| 218015414 | 1000 | 45 | 101 | 230 | 10 |
| 218016316 | 2000 | 45 | 136 | 265 | 10 |
| 218017312 | 5000 | 45 | 182 | 335 | 1 |
| 218018617 | 10000 | 45 | 227 | 415 | 1 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Original Amber" tab_id="OriginalAmber"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]DURAN® Laboratory Bottle Amber with cap
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]DURAN® Laboratory Bottle Amber without cap[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Laboratory Bottle Amber with DIN thread, USP <660> and USP <671> (Spectral Transmission) compliant
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. UV protection up to approx. 500 nm wavelength. Unchanged DURAN® properties within the bottle, as colouration is only on the outer surface. Very uniform, durable and chemically resistant amber colour due to use of innovative technology.
Typical applications: storage and transport of light-sensitive substances.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Remarks | Pack Unit |
| with screw cap and pouring ring from PP (blue) | ||||||
| 218060856 | 10 | 25 | 36 | 54 | Acceptance within ISO 4796 standard has been requested. With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218061458 | 25 | 25 | 36 | 74 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218061758 | 50 | 32 | 46 | 91 | 10 | |
| 218062454 | 100 | 45 | 56 | 105 | 10 | |
| 218062951 | 150 | 45 | 62 | 115 | 10 | |
| 218063656 | 250 | 45 | 70 | 143 | 10 | |
| 218064455 | 500 | 45 | 86 | 181 | 10 | |
| 218065151 | 750 | 45 | 95 | 208 | 10 | |
| 218065451 | 1000 | 45 | 101 | 230 | 10 | |
| 218066353 | 2000 | 45 | 136 | 265 | 10 | |
| 218066953 | 3500 | 45 | 160 | 300 | 1 | |
| 218067358 | 5000 | 45 | 182 | 335 | 1 | |
| 218068654 | 10000 | 45 | 227 | 415 | 1 | |
| without screw cap and pouring ring | ||||||
| 218060807 | 10 | 25 | 36 | 50 | Acceptance within ISO 4796 standard has been requested. With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218061409 | 25 | 25 | 36 | 70 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218061709 | 50 | 32 | 46 | 87 | 10 | |
| 218062405 | 100 | 45 | 56 | 100 | 10 | |
| 218062902 | 150 | 45 | 62 | 110 | 10 | |
| 218063607 | 250 | 45 | 70 | 138 | 10 | |
| 218064406 | 500 | 45 | 86 | 176 | 10 | |
| 218065102 | 750 | 45 | 95 | 203 | 10 | |
| 218065402 | 1000 | 45 | 101 | 225 | 10 | |
| 218066304 | 2000 | 45 | 136 | 260 | 10 | |
| 218066904 | 3500 | 45 | 160 | 295 | 1 | |
| 218067309 | 5000 | 45 | 182 | 330 | 1 | |
| 218068605 | 10000 | 45 | 227 | 410 | 1 | |
| 218068802 | 15000 | 45 | 268 | 445 | 1 | |
| 218069104 | 20000 | 45 | 288 | 505 | 1 | |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Protect" tab_id="Protect"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]DURAN® Protect Laboratory Bottle with cap[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]DURAN® Protect Laboratory Bottle without cap[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Protect Laboratory Bottle with DIN thread, plastic coated
With easy-to-read scale. In fired-on, highly durable white ceramic. Service temperature limit of the PU plastic coating: – 30 °C to + 135 °C. The coating provides scratch, leak* and splinter* protection and is ideally suited to both the transport and storage of hazardous media or valuable samples. UV protection up to approx. 380 nm wavelength. High transparency. Suitable for microwaving. (* only applies to bottles 5 000 mL and less)
Typical applications: storage, transport and safe handling of hazardous or valuable substances.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Remarks | Pack Unit |
| with screw cap and pouring ring | ||||||
| 218052453 | 100 | 45 | 56 | 100 | 10 | |
| 218052959 | 150 | 45 | 62 | 110 | 10 | |
| 218053655 | 250 | 45 | 70 | 138 | 10 | |
| 218054454 | 500 | 45 | 86 | 176 | 10 | |
| 218055159 | 750 | 45 | 95 | 203 | 10 | |
| 218055459 | 1000 | 45 | 101 | 225 | 10 | |
| 218056352 | 2000 | 45 | 136 | 260 | 10 | |
| 218056952 | 3500 | 45 | 160 | 295 | 1 | |
| 218057357 | 5000 | 45 | 182 | 330 | 1 | |
| without screw cap and pouring ring | ||||||
| 218050806 | 10 | 25 | 36 | 50 | Acceptance within ISO 4796 standard has been requested. With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 1092676 | 25 | 25 | 36 | 70 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 1092677 | 50 | 32 | 46 | 87 | 10 | |
| 218052404 | 100 | 45 | 56 | 100 | 10 | |
| 218052901 | 150 | 45 | 62 | 110 | 10 | |
| 218053606 | 250 | 45 | 70 | 138 | 10 | |
| 218054405 | 500 | 45 | 86 | 176 | 10 | |
| 218055101 | 750 | 45 | 95 | 203 | 10 | |
| 218055401 | 1000 | 45 | 101 | 225 | 10 | |
| 218056303 | 2000 | 45 | 136 | 260 | 10 | |
| 218056903 | 3500 | 45 | 160 | 295 | 1 | |
| 218057308 | 5000 | 45 | 182 | 330 | 1 | |
| 218058604 | 10000 | 45 | 228 | 410 | 1 | |
| 218058801 | 15000 | 45 | 268 | 445 | 1 | |
| 218059103 | 20000 | 45 | 289 | 505 | 1 | |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Protect Amber" tab_id="ProtectAmber"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Protect Laboratory Bottle Amber with DIN thread, plastic coated, USP <660> and USP <671> (Spectral Transmission) compliant
With easy-to-read scale. In fired-on, highly durable white ceramic. Service temperature limit of the PU plastic coating: – 30 °C to + 135 °C. The coating provides scratch, leak and splinter protection and is ideally suited to both the transport and storage of hazardous media or valuable samples. UV protection up to approx. 500 nm wavelength. Unchanged DURAN® properties within the bottle, as colouration is only on the outer surface. Very uniform, durable and chemically resistant amber colour due to use of innovative technology. Suitable for microwaving.
Typical applications: storage, transport and safe handling of hazardous or valuable substances.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Remarks | Pack Unit |
| without screw cap and pouring ring | ||||||
| 218061433 | 25 | 25 | 36 | 70 | With specially shaped glass edge for improved pouring out (so that an additional plastic pouring ring is not required). | 10 |
| 218061733 | 50 | 32 | 46 | 87 | 10 | |
| 218062438 | 100 | 45 | 56 | 110 | 10 | |
| 218063631 | 250 | 45 | 70 | 138 | 10 | |
| 218064439 | 500 | 45 | 86 | 176 | 10 | |
| 218065435 | 1000 | 45 | 101 | 225 | 10 | |
| 218066337 | 2000 | 45 | 136 | 260 | 10 | |
| 218067333 | 5000 | 45 | 182 | 330 | 1 | |
| 1173548 | 10000 | 45 | 227 | 410 | 1 | |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Pressure plus+" tab_id="Pressureplus"][vc_row_inner][vc_column_inner][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® pressure plus+ Laboratory Bottle with DIN thread, GL 45
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable ceramic. Pressure resistance conforms to DIN EN 1595, confirmed by GS marking (TÜV ID: 0000020716). Vacuum and/or pressure resistant from – 1 bar to + 1.5 bar due to modified geometry (based on ISO 4796-1). When pressure loaded the following apply: thermal shock resistance 30 K and maximum usage temperature + 140 °C. Blue scale for visual differentiation from the standard laboratory bottle. Also available in amber.
Typical applications: safe working under pressure or vacuum, sampling under pressure, storage of gas generating media.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| without screw cap and pouring ring | |||||
| 218102406 | 100 | 45 | 56 | 100 | 10 |
| 1092234 | 250 | 45 | 70 | 138 | 10 |
| 1092235 | 500 | 45 | 86 | 176 | 10 |
| 218105403 | 1000 | 45 | 101 | 225 | 10 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Pressure plus + Amber" tab_id="pressureplusAmber"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® pressure plus+ Laboratory Bottle Amber with DIN thread, GL 45, USP <660> and USP <671> (Spectral Transmission) compliant
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable ceramic. Pressure resistance conforms to DIN EN 1595, confirmed by GS marking (TÜV ID: 0000020716). Vacuum and/or pressure resistant from – 1 bar to + 1.5 bar due to modified geometry (based on ISO 4796-1). When pressure loaded the following apply: thermal shock resistance 30 K and maximum usage temperature + 140 °C. Blue scale for visual differentiation from the standard laboratory bottle. UV protection up to approx. 500 nm wavelength. Unchanged DURAN® properties within the bottle, as colouration is only on the outer surface. Very uniform, durable and chemically resistant amber colour due to use of innovative technology.
Typical applications: safe working under pressure or vacuum, sampling under pressure, storage of gas generating media.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| without screw cap and pouring ring | |||||
| 218162403 | 100 | 45 | 56 | 100 | 10 |
| 1094367 | 250 | 45 | 70 | 138 | 10 |
| 1094368 | 500 | 45 | 86 | 176 | 10 |
| 218165409 | 1000 | 45 | 101 | 225 | 10 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Pressure plus + and Protect" tab_id="PressureplusProtect"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® pressure plus+ Laboratory Bottle Protect plastic coated, with DIN thread, GL 45
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable ceramic. Pressure resistance conforms to DIN EN 1595, confirmed by GS marking (TÜV ID: 0000020716). Vacuum and/or pressure resistant from – 1 bar to + 1.5 bar due to modified geometry (based on ISO 4796-1). When pressure loaded the following apply: thermal shock resistance 30 K and maximum usage temperature + 140 °C. Blue scale for visual differentiation from the standard laboratory bottle. The coating provides scratch, leak and splinter protection and is ideally suited to both the transport and storage of hazardous media or valuable samples.
Typical applications: safe working under pressure or vacuum, sampling under pressure, storage of gas generating media.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| without screw cap and pouring ring | |||||
| 218152402 | 100 | 45 | 56 | 100 | 10 |
| 1175925 | 250 | 45 | 70 | 138 | 10 |
| 1175926 | 500 | 45 | 86 | 176 | 10 |
| 218155408 | 1000 | 45 | 101 | 225 | 10 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Premium" tab_id="Premium"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Premium Bottle with DIN thread, GL 45
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. Complete with pouring ring and cap from TpCh260 (similar to PFA ). The premium cap with its PTFE coated silicone seal is colourless and temperature resistant from – 196 °C to + 200 °C. Together with proven DURAN® properties, TÜV tested thermal shock resistance of 160 K, confirmed by GS-marking (TÜV ID: 0000020715). USP/FDA conformity for the entire system comprised of bottle, screw cap and pouring ring. Accurate scale: ± 5 %. Additional graduations as well as additional opposing scale simplify reading off.
Typical applications: Due to its properties, ideal for applications in the pharmaceutical industry, handling of aggressive media, sterilisation processes (hot air and dry sterilisation) and depyrogenation.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| with premium screw cap and pouring ring | |||||
| 1127075 | 100 | 45 | 56 | 105 | 10 |
| 1127076 | 250 | 45 | 70 | 143 | 10 |
| 1127077 | 500 | 45 | 86 | 181 | 10 |
| 1127078 | 1000 | 45 | 101 | 230 | 10 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Square" tab_id="Square"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Laboratory Bottle, Square with DIN thread
With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. Complete with blue screw cap (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature limit of screw cap and pouring ring: + 140 °C. Ergonomic handling due to angular shape, highly stable, good stackability. Alongside proven DURAN® properties, a space saving of 44 % in comparison with standard laboratory bottles (example applies to 100 mL bottles). Screw caps are also available in the following colours: green, yellow and grey.
Typical applications: space-saving storage, space-saving transport.
| Cat. No. | Capacity (ml) |
DIN Thread (GL) |
d(OD) (mm) |
h (mm) |
Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218202453 | 100 | 32 | 50 | 109 | 10 |
| 218203655 | 250 | 45 | 64 | 143 | 10 |
| 218204454 | 500 | 45 | 78 | 181 | 10 |
| 218205459 | 1000 | 45 | 94 | 222 | 10 |
| without screw cap and pouring ring | |||||
| 218202404 | 100 | 32 | 50 | 109 | 10 |
| 1008834 | 250 | 45 | 64 | 143 | 10 |
| 1008842 | 500 | 45 | 78 | 181 | 10 |
| 1008843 | 1000 | 45 | 94 | 222 | 10 |
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Overview (Simpified Chinese)" tab_id="overview"][vc_single_image image="3050" img_size="full"][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Back to Your Location[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® GLS 80® Bottles Wide Neck
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® GLS 80® Bottles Wide Neck[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DURAN® GLS 80® GLASS BOTTLES WITH WIDE NECK
Large, wide neck ideal for filling and pouring.[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]GREATER CONVENIENCE FOR EVERYDAY LAB WORK We have extended our DURAN® laboratory glassware range. Our new wide neck glass bottles with large, 80 mm diameter neck size are available in eight different sizes. All sizes are also available in amber for light-sensitive media. This range also features a selection of quickrelease caps.
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]ENDLESS APPLICATIONS
DURAN® GLS 80® wide neck glass bottles are extremely versatile: ideal for pouring, filling, mixing, preparing, storing, transporting, dispatching, taking samples in the field and hot filling, whether in the laboratory or in production.
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]SAFE AND EASY TO USE
The DURAN® GLS 80® laboratory glassware range features a specially developed screw thread. The matching quick-release cap allows the bottle to be easily opened and closed with a minimum of turns.
The 80 mm wide neck facilitates easy and safe charging and removal of powders, pastes, granules and liquids. Spoons, spatulas and tweezers can be manipulated with ease. Even large-volume funnels can be inserted into the bottles without any difficulty. The wide neck also makes cleaning the bottles particularly easy.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
SPECIAL FEATURES OF THE DURAN® GLS 80 WIDE NECK GLASS BOTTLE
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Wide neck screw thread – 80 mm diameter, special thread design for rapid opening and closing. Inert and chemically resistant – exceptional properties of DURAN® eliminate problems with ion leaching. Mechanical strength – the sturdy design of these wide neck bottles enhances safety and service life. Sterilisable – excellent thermal properties for autoclaving and dry sterilization. Transparency – contents and volume can be visually checked with ease.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Traceability – the eight-digit batch code allows the bottles to be traced back to the point of production, including the matching batch. The end-user can use the corresponding item number to retrieve a batch and quality certificate for any DURAN® laboratory bottle at any time via the Internet. Stability – the large, stable base area allows for safe and easy storage. Labelling – provided with a printed white panel for labelling the contents. Graduated – convenient, easy-to-read graduations indicating volume.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
SPECIAL ADVANTAGES OF THE GLS 80® QUICK-RELEASE CAP
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]User-friendly – the special thread design enables the bottle to be opened and closed quickly with less than two turns of the cap. Temperature-resistant – the polypropylene cap is autoclavable up to 140° C. Matching pouring ring – for drip-free pouring[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Ordering Inforatmion
[/vc_column_text][vc_tta_tabs][vc_tta_section title="GLS80" tab_id="GLS80"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® GLS 80® Laboratory Bottle Wide Mouth
with GLS 80® thread With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. Complete with blue quick release closure (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature limit of closure and pouring ring: + 140 °C. Special thread means opening takes less than a turn. The 80 mm wide outer diameter of the bottle mouth permits easy filling and pouring out of powders and viscous substances. Typical applications: storage, transport, safekeeping and sampling of substances, easy to use with granulated material, powders and viscous media, sampling of hot media.| Cat. No. | Capacity (ml) | Thread | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218603656 | 250 | 80 | 95 | 110 | 10 |
| 1112627 | 500 | 80 | 101 | 153 | 10 |
| 1112713 | 1000 | 80 | 101 | 223 | 10 |
| 1112715 | 2000 | 80 | 136 | 253 | 10 |
| 218606953 | 3500 | 80 | 160 | 276 | 1 |
| 1113949 | 5000 | 80 | 182 | 315 | 1 |
| 1113950 | 10000 | 80 | 227 | 390 | 1 |
| 1113951 | 20000 | 80 | 288 | 485 | 1 |
| 1200265 | 30000 | 80 | 340 | 548 | 1 |
| 1200154 | 50000 | 80 | 400 | 590 | 1 |
| without screw cap and pouring ring | |||||
| 218603607 | 250 | 80 | 95 | 105 | 10 |
| 1178392 | 500 | 80 | 101 | 148 | 10 |
| 1178424 | 1000 | 80 | 101 | 218 | 10 |
| 1178425 | 2000 | 80 | 136 | 248 | 10 |
| 218606904 | 3500 | 80 | 160 | 271 | 1 |
| 1178426 | 5000 | 80 | 182 | 310 | 1 |
| 1178427 | 10000 | 80 | 227 | 385 | 1 |
| 1178428 | 20000 | 80 | 288 | 480 | 1 |
DURAN® GLS 80® Laboratory Bottle Wide Mouth Amber
with GLS 80®, USP <660> and USP <671> (Spectral Transmission) compliant With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. Complete with blue quick release closure (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature limit of closure and pouring ring: + 140 °C. Alongside easy handling, UV protection up to 500 nm. Unchanged DURAN® properties within the bottle, as colouration is only to the outer surface. Very uniform, durable and chemically resistant amber colour due to use of innovative technology. Typical applications: storage, transport and safekeeping of light-sensitive substances, easy to use with granulated material, powders and viscous media.| Cat. No. | Capacity (ml) | Thread | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218663653 | 250 | 80 | 95 | 110 | 10 |
| 1160146 | 500 | 80 | 101 | 153 | 10 |
| 1160147 | 1000 | 80 | 101 | 223 | 10 |
| 1160148 | 2000 | 80 | 136 | 253 | 10 |
| 218666959 | 3500 | 80 | 160 | 276 | 1 |
| 1160149 | 5000 | 80 | 182 | 315 | 1 |
| 1160150 | 10000 | 80 | 227 | 390 | 1 |
| 1160151 | 20000 | 80 | 288 | 485 | 1 |
| without screw cap and pouring ring | |||||
| 218663604 | 250 | 80 | 95 | 105 | 10 |
| 1178429 | 500 | 80 | 101 | 148 | 10 |
| 1178430 | 1000 | 80 | 101 | 218 | 10 |
| 1178431 | 2000 | 80 | 136 | 248 | 10 |
| 218666901 | 3500 | 80 | 160 | 271 | 1 |
| 1178432 | 5000 | 80 | 182 | 310 | 1 |
| 1178433 | 10000 | 80 | 227 | 385 | 1 |
| 1178434 | 20000 | 80 | 288 | 480 | 1 |
DURAN® GLS 80® Protect Laboratory Bottle Wide Mouth
with GLS 80® thread, plastic coated With easy-to-read scale. In fired-on, highly durable white ceramic. Complete with blue quick release closure (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature limit of closure and pouring ring: + 140 °C. Service temperature limit of the PU plastic coating: – 30 °C to + 135 °C. The coating provides scratch, leak and splinter protection and is ideally suited to both the transport and storage of hazardous media or valuable samples. UV protection up to approx. 380 nm wavelength. High transparency. Suitable for microwaving. Typical applications: storage, transport and safe handling of hazardous substances. Storage of high value viscous liquids, pastes and powder.| Cat. No. | Capacity (ml) | Thread | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218653652 | 250 | 80 | 95 | 110 | 10 |
| 1160152 | 500 | 80 | 101 | 153 | 10 |
| 1160163 | 1000 | 80 | 101 | 223 | 10 |
| 1160164 | 2000 | 80 | 136 | 253 | 10 |
| 218656953 | 3500 | 80 | 160 | 276 | 1 |
| 1160165 | 5000 | 80 | 182 | 315 | 1 |
| without screw cap and pouring ring | |||||
| 218653603 | 250 | 80 | 95 | 105 | 10 |
| 218656909 | 3500 | 80 | 160 | 271 | 1 |
DURAN® GLS 80® Protect Laboratory Bottle Wide Mouth Amber
with GLS 80®, plastic coated, USP <660> and USP <671> (Spectral Transmission) compliant With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic. Complete with blue quick release closure (PP, integral lip seal) and pouring ring (PP) for drip-free pouring and clean, safe working. Service temperature limit of closure and pouring ring: + 140 °C. Service temperature limit of the PU plastic coating: – 30 °C to + 135 °C. The coating provides scratch, leak and splinter protection and is ideally suited to both the transport and storage of hazardous media or valuable samples. UV protection up to approx. 380 nm wavelength. Suitable for microwaving. Typical applications: storage, transport and safe handling of hazardous substances. Storage of high value viscous liquids, pastes and powder.| Cat. No. | Capacity (ml) | Thread | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 1167308 | 500 | 80 | 101 | 153 | 10 |
| 1167309 | 1000 | 80 | 101 | 223 | 10 |
| without screw cap and pouring ring | |||||
| 218664436 | 500 | 80 | 101 | 148 | 10 |
| 218665432 | 1000 | 80 | 101 | 218 | 10 |
| 218666334 | 2000 | 80 | 136 | 248 | 10 |
| 218667339 | 5000 | 80 | 182 | 310 | 1 |
Related products
[/vc_column_text][/vc_column][/vc_row]
DURAN® YOUTILITY bottles
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® YOUTILITY bottles[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DURAN® YOUTILITY
DURAN® YOUTILITY bottle system, a new generation of glass laboratory bottles for use in a wide and diverse range of scientific research applications. The innovation does not stop at the improved ergonomic bottle shape, but extends to dedicated accessories that incorporate many new innovative features to improve handling, sample identification, and ease of use. The new YOUTILITY bottle system helps to make laboratory work easier, safer, more economical and fun.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/2"][vc_column_text]
YOUTILITY BOTTLE - DESIGNED FOR YOU
THE AWARD-WINNING LABORATORY BOTTLE SYSTEM FROM DURAN®
[/vc_column_text][/vc_column][vc_column width="1/2"][vc_single_image image="3073" img_size="full"][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
YOUTILITY CAP - ONE GOOD TURN DESERVES ANOTHER
[/vc_column_text][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
ERGONOMIC DESIGN
The optimized, ergonomic shape of the screw cap has comfortable grooves and ridges for a more efficient and easier tightening or removal, especially with smaller sized or gloved hands. The inverted cone form of the cap makes bottle handling easier and far safer.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
SHORTENED THREAD
The shortened thread inside the cap permits faster opening and closing, yet it is fully compatible with standard DIN GL 45 glass bottle threads.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]SECURE SEALING
The tried and tested cap plug sealing system ensures a liquid tight seal.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text][/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
PRODUCT FEATURES
The YOUTILITY screw cap features an integrated two or three character Retrace Code to provide product traceability via a downloadable certificate. The cap is manufactured from a food grade polypropylene that is fully autoclavable and totally reusable.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
GLASS THREAD - NO PLAYING AROUND
[/vc_column_text][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]With the new glass threa, the opening or closing of the YOUTILITY bottles is significantly faster. Yet the thread remains fully compatiable with DIN GL45 Closures and other accessories.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
BOTTLE TAGE - SHOW YOUR TRUE COLOR
[/vc_column_text][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
COLOUR CODING
The colourful GL 45 Bottle Tags offer an elegant solution to the marking of laboratory bottles. The Bottle Tags can be easily and securely attached around the neck of the YOUTILITY bottle, even with the screw cap in place. The Bottle Tags feature a graspable tab that makes them easy to remove with bare or gloved hands.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
EIGHT COLOURS
Eight playful colours: red, orange, yellow, green, blue, purple, black and white. Available in single colour packs.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
ROBUST AND RE-USABLE
The silicone Bottle Tags are chemically robust, heat resistant, fully autoclavable and totally re-usable.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]SCALE - STEPPING UP TO THE MARK
[/vc_column_text][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]The total volume is clearly and unambigously indicated in durable white ceramic. This enables a long service life and the measured volume can be read clearly and accurately.
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
BOTTLE FEATURE - GET TO GRIPS WITH YOUR RESEARCH
[/vc_column_text][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
GRIP ZONES
The specially shaped gripping zones on both sides of the bottle permit easier and safer handling.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
SPACE SAVING
The slimmer YOUTILITY bottle shape allows a more optimal use of limited space in autoclaves and laboratory refrigerators. The bottles can be conveniently stacked horizontally on their sides.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]BOTTLE LABELLING
A pre-defined labelling area is compatible with the dedicated self-adhesive YOUTILITY bottle labels.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
FOUR USEFUL SIZES
Sequentially sized bottles 125, 250, 500 and 1000 ml. The glass bottles are moulded from the tried and tested DURAN® borosilicate 3.3, a pharmacopoeial Type 1 neutral glass. DURAN® glass offers a very good chemical resistance and high temperature resistance.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
AMBER, LOW ACTINIC GLASS
As an alternative to clear DURAN® glass, the amber coloured glass offers protection against ultraviolet light for light sensitive material, and fully meets the requirements of the USP <660> and Eur. Ph. 3.2.1. The amber colour is permanently fired into the exterior glass surface. The treatment does not affect the properties of the inner surface of the bottle. The amber bottles can be used for the storage or transport of chemicals sensitive to light.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
RETRACE CODE
Integrated Retrace Code for full product traceability of the borosilicate glass bottle.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]OPTIMISED PACK SIZES
Good things come in small packages. YOUTILITY bottles are available in smaller pack of four complete bottles.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/4"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
LABELS - A PLACE FOR EVERYTING
[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]YOUTILITY LABELS
The YOUTILITY labels were developed to address the need for a reliable, short term method of sample, cap and bottle tracking and identification. The labels will stay on when you need them to do so, and are easy to remove when no longer required. This allows the bottles and caps to be quickly and easily cleaned, ready for re-use. After use, the YOUTILITY labels may be easily and completely removed by peeling.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_column_text]
ROBUST BUT FLEXIBLE
Manufactured from a tear resistant, matt white, polyester material coated with a high performance adhesive. The print receptive top surface will accept a variety of inks, including copier, printer and technical markers. The labels are chemically resistant to typical laboratory chemicals such as disinfectants and many solvents. They have a wide -40 °C to +150 °C temperature performance range, making them suitable for use in fridges, freezers, autoclaves, incubators and water baths without the risk of the labels drying out or falling off.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Ordering Information
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Youtility" tab_id="Youtility"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® YOUTILITY Laboratory Bottle
GL 45
The specially shaped gripping zones on both sides of the bottle enable easier and safer handling. With the new DURAN® YOUTILITY bottle thread opening or closing the bottle is significantly faster. The thread is fully compatible with DIN GL 45 closures and other accessories. The slimmer DURAN® YOUTILITY bottle shape allows a more optimal use of limited space in autoclaves and laboratory refrigerators. A pre-defined labelling area is compatible with the dedicated DURAN® self-adhesive YOUTILITY bottle labels. Nominal volume is shown at the top of the easy-to-read graduation scale for fast determination of the volumes. Each DURAN® YOUTILITY bottle is supplied as a complete system, with a pouring ring (PP) and a GL 45 cap (PP).| Cat. No. | Capacity (ml) | DIN Thread (GL) | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218812854 | 125 | 45 | 55 | 124 | 4 |
| 218813653 | 250 | 45 | 66 | 158 | 4 |
| 218814452 | 500 | 45 | 78 | 193 | 4 |
| 218815457 | 1000 | 45 | 93 | 253 | 4 |
DURAN® YOUTILITY Laboratory Bottle Amber
GL 45, USP <660> and USP <671> (Spectral Transmission) compliant
The specially shaped gripping zones on both sides of the bottle enable easier and safer handling. With the new DURAN® YOUTILITY bottle thread opening or closing the bottle is significantly faster. The thread is fully compatible with DIN GL 45 closures and other accessories. The slimmer DURAN® YOUTILITY bottle shape allows a more optimal use of limited space in autoclaves and laboratory refrigerators. A pre-defined labelling area is compatible with the dedicated DURAN® self-adhesive YOUTILITY bottle labels. Nominal volume is shown at the top of the easy-to-read graduation scale for fast determination of the volumes. The glass bottle body is moulded from the tried and tested DURAN® borosilicate 3.3 pharmacopoeial Type 1 neutral glass. DURAN® glass offers very good chemical resistance and high temperature resistance. Each DURAN® YOUTILITY bottle is supplied as a complete system, with a pouring ring (PP) and a GL 45 cap (PP).| Cat. No. | Capacity (ml) | DIN Thread (GL) | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP (blue) | |||||
| 218862859 | 125 | 45 | 55 | 124 | 4 |
| 218863658 | 250 | 45 | 66 | 158 | 4 |
| 218864457 | 500 | 45 | 78 | 193 | 4 |
| 218865453 | 1000 | 45 | 93 | 253 | 4 |
DURAN® YOUTILITY Screw Cap from PP
GL 45
The DURAN® YOUTILITY Screw Cap GL 45 is manufactured from a food-grade polypropylene (PP). Ergonomically shaped screw cap with optimised grooves and ridges for a more efficient and easier tightening or removal. The faster opening and closing thread of the YOUTILITY screw cap is fully compatible with DIN GL 45 bottle threads. The optimised cap sealing system ensures a liquid tight seal. A pre-defined labelling area on the cap is compatible with the dedicated DURAN® self-adhesive YOUTILITY labels.| Cat. No. | DIN Thread (GL) | d(OD) (mm) | h (mm) | Colour | Pack Unit |
| screw cap | |||||
| 292292802 | 45 | 53 | 25 | cyan | 10 |
| pouring ring | |||||
| 292412808 | 45 | 4 | cyan | 16 | |
DURAN® YOUTILITY Bottle Tag
GL 45, from silicone
The silicone GL 45 Bottle Tags can be securely attached around the neck of the YOUTILITY bottle for easy customisation and unambiguous bottle identification. The elastic Bottle Tags will fit around any DIN GL 45 bottle neck.| Cat. No. | Thread | Colour | Pack Unit |
| 292432904 | 45 | eight colours, two pieces each | 16 |
| 292432818 | 45 | red | 20 |
| 292432826 | 45 | orange | 20 |
| 292432834 | 45 | yellow | 20 |
| 292432842 | 45 | green | 20 |
| 292432859 | 45 | blue | 20 |
| 292432867 | 45 | purple | 20 |
| 292432875 | 45 | black | 20 |
| 292432883 | 45 | white | 20 |
DURAN® YOUTILITY LABELS
Printable self-adhesive
The robust DURAN® YOUTILITY identification labels are suitable for use with the YOUTILITY bottle, plus many other types of laboratory glassware, such as GL 45 bottles, beakers and conical flasks- The tear resistant, white polyester YOUTILITY labels use a high performance, peelable adhesive.
- An easy-to-use label creator web app. is available (www.duranlabels.com) to design, and print your own label designs.
- Ideal for use in fridges, freezers, autoclaves, incubators, and water baths, without the risk of the labels falling off.
- Can be printed with office printers, copiers, or marked with technical lab pens (pre-test ink for suitability).
- Chemically resistant to many typical laboratory chemicals, and solvents.
- Wide −40 to +150 °C thermal performance range.
- Supplied in a re-sealable, pack of 100 labels on five A4 sheets.
www.duranlabels.com
or contact our sales people.
| Cat. No. | Description | Pack Unit |
| 294010203 | DURAN® YOUTILITY Printable Identification labels White polyester 36 x 70 mm | 1 x 100 labels |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® TILT Media Bottle System
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® TILT Media Bottle System[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DURAN® TILT MEDIA BOTTLE SYSTEM
TURNING USABILITY INTO SECURITY
Biosafety cabinets and clean hoods are essential for working with cell cultures under sterile conditions. Unfortunately, they make the handling of media bottles difficult and time-consuming for researchers. The DURAN® TILT bottle changes everything. The TILT bottle has two positions: upright for filter sterilization or storage, and tilted at 45° for pipetting. Take a look at cell culture media from a new angle and discover a bottle system that eases handling and turns usability into security.[/vc_column_text][vc_row_inner][vc_column_inner width="1/6"][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]GL 56 mouth and screw cap for safer handling The wide mouth ensures safe and easy pipetting. The ergonomic cap is easy to open and close. Made from non-cytotoxic materials.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_column_text]100 % bigger opening for easy pipetting
The GL 56 mouth is 100 % larger than the GL 45. It accommodates even large volume pipettes (100 ml ) and helps avoid contamination.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Low bottle height for easy handling in safety cabinets
The compact bottle is easy to put through the gap under the sash, and is easier to use inside the hood.
Space saving shape for fridge storage and water baths
The stable and space-saving 500 ml bottle is perfect for fridge storage, or for warming media in a water bath.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="3133" img_size="full"][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]45º TILT position for pipetting without holding the bottle
Tilt the bottle to its 45° position for pipetting instead of holding it in your hand.
Tilted volume indicators for convenience
The clear markings show the volume in both tilted and upright positions and are visible from both sides, for the convenience of left and right-handed users.
Vacuum resistant bottle for safe filter sterilization
The bottle is vacuum resistant and may be safely used for the filter sterilization of media.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Borosilicate 3.3 glass for reusability and lower whole life costs
DURAN® borosilicate 3.3 glass is a tried and trusted material certified as non-cytotoxic (according to ISO 10993-5:2009). DURAN® glass does not leach any organic molecules that might affect the culturing of cells. In addition, DURAN® glass may be depyrogenated to destroy endotoxins using dry heat or chemical based methods.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_column_text]
OPTIMIZE YOUR WORKFLOW BY TILT ING
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]
FILTERING
In the upright position, the DURAN® TILT bottle system is ideal for filter sterilizing or clarifying cell culture media. Low bottle height is practical in the biosafety cabinet. DURAN® GL 45 thread adaptor allows any 45 mm filter units to be used with DURAN® TILT bottle.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text]
PIPETTING
In the 45° tilted position, the DURAN® TILT bottle makes pipetting of media easier under the hood. The innovative design enables both good aseptic and ergonomic practice.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_single_image image="3135" img_size="full"][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® bottle top vacuum filtration units
Designed for sterilization or clarification of aqueous cell culture media. Supplied as a filter funnel only unit for use with the DURAN® TILT bottle (with GL 45 thread adaptor) or 45 mm media bottles. Comes in three different asymmetric pore sizes (0.1 μm, 0.2 μm, or 0.45 μm). Raised molded graduation marks for easy volume reading. Manufactured in a Class 100,000 clean room from Class VI, non-cytotoxic materials. Supplied sterile.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_single_image image="3134" img_size="full"][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® GL 45 thread adaptor (re-usable)
The re-usable adaptor (GL 45 external / GL 56 internal) allows the use of the DURAN® TILT bottle with 45 mm filtration units for the filter sterilization of cell culture media. Manufactured from inert PTFE; can be autoclaved and depyrogenated at 300 °C.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
DURAN® TILT ACCESSORIES
[/vc_column_text][vc_row_inner][vc_column_inner width="1/6"][vc_single_image image="3138" img_size="full"][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® TILT GL 56 cap labels Careful labeling is very important to prevent mix-ups and mistakes. The GL 56 self-adhesive cap labels can be used to clearly indicate the separate bottles of media for each cell line, preventing possible cross-contamination.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_single_image image="3140" img_size="full"][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® GL 56 Bottle Tags The Bottle Tags can be used on their own for color identification or to secure the protective Light Shield around the bottle. The GL 56 Bottle Tags are available in four colors (orange, yellow, blue and purple).[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/6"][vc_single_image image="3139" img_size="full"][/vc_column_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® TILT protective Light Shield The DURAN® TILT Light Shield is a white silicone sleeve that covers 94% of the bottle surface. The sleeve has a number of protective functions: it blocks damaging ultraviolet (UV) light, protects the glass surface from damage, and facilitates safer handling. Silicone provides a much better grip than glass; especially when the bottle has been sprayed with 70% alcohol for surface disinfection.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_column_text]Specification and ordering information
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_tta_tabs][vc_tta_section title="TILT media bottle and screw cap" tab_id="TILTbottlecap"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® TILT Media Bottle
GL 56 The DURAN® TILT bottle has two positions: upright for filter sterilization or storage, and tilted at 45° for pipetting. The bottle systems allows working with cell culture media under sterile conditions in biosafety cabinets and clean hoods.| Cat. No. | Capacity (ml) | DIN Thread (GL) | d(OD) (mm) | h (mm) | Pack Unit |
| with screw cap and pouring ring from PP | |||||
| 218914459 | 500 | 56 | 124 | 148 | 4 |
DURAN® TILT Screw Cap
GL 56, from PP The ergonomic cap is easy to open and close. Made from non-cytotoxic materials.| Cat. No. | DIN Thread (GL) | d(OD) (mm) | h (mm) | Colour | Pack Unit |
| 292295602 | 56 | 62 | 27 | white | 10 |
DURAN® TILT Bottle Top Filter Unit
GL 45 Designed for sterilization or clarification of aqueous cell culture media Supplied as a filter funnel unit for use with the DURAN® TILT bottle (with GL 45 thread adaptor) or 45 mm media bottles. Comes in three different asymmetric pore sizes (0.1 μm, 0.2 μm, or 0.45 μm). Raised moulded graduation marks for easy volume reading. Manufactured in a Class 100,000 clean room from Class VI, non-cytotoxic materials. Supplied sterile.| Cat. No. | Description | Capacity (ml) | DIN Thread (GL) | d(OD) (mm) | h (mm) | Pack Unit |
| 292702818 | PES 0.1μm | 500 | 45 | 92 | 103 | 12 |
| 292702826 | PES 0.2μm | 500 | 45 | 92 | 103 | 12 |
| 292702842 | PES 0.45μm | 500 | 45 | 92 | 103 | 12 |
DURAN® TILT Adaptor
GL 45/GL 56, from PTFE The re-usable adaptor (GL 45 external / GL 56 internal) allows the use of the DURAN® TILT bottle with 45 mm filtation units for the filter sterilisation of cell culture media. Manufactured from inert PTFE; can be autoclaved and depyrogenised at 300 °C.| Cat. No. | DIN Thread (GL) | d(OD) (mm) | h (mm) | Colour | Pack Unit |
| 291195601 | GL 45 / GL 56 | 65 | 46 | white | 1 |
DURAN® TILT GL 56 Cap Labels
self-adhesive Careful labelling is very important to prevent mix-ups and mistakes. The GL 56 selfadhesive polyester cap labels can be used to clearly indicate the separate bottles of media for each cell line, preventing possible cross-contamination. A pack contains 60 screw cap labels.| Cat. No. | Description | Pack Unit |
| 294015604 | White polyester | 1 pack, pack of 60 labels |
DURAN® TILT Bottle Tag
GL 56, from silicone The Bottle Tags can be used on their own for colour identification or to secure the protective Light Shield around the bottle. The GL 56 Bottle Tags are available in four colours: orange, yellow, blue and purple.| Cat. No. | DIN Thread (GL) | Colour | Pack Unit |
| 292435626 | 56 | orange | 20 |
| 292435634 | 56 | yellow | 20 |
| 292435659 | 56 | blue | 20 |
| 292435667 | 56 | purple | 20 |
DURAN® TILT Light Shield
white, from silicone The DURAN® TILT Light Shield is a white silicone sleeve that covers 94 % of the bottle surface. The sleeve has a number of protective functions: it blocks damaging ultraviolet light (UV), protects the glass surface from damage, and facilitates safer handling. DURAN® TILT Light Shield includes four GL 56 Bottle Tags (Orange, Yellow, Blue, Purple) made from silicone.| Cat. No. | Colour | Pack Unit |
| 292435601 | white | 4 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® GL 45 Bottle Carrying System
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® GL 45 Bottle Carrying System[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

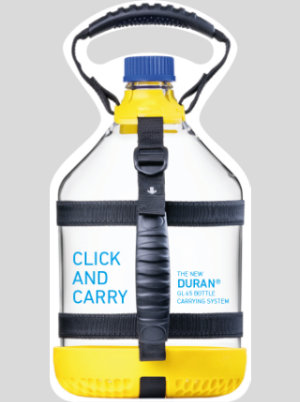

DURAN® GL 45 BOTTLE CARRYING SYSTEM
The new modular Bottle Carrying System fi ts standard laboratory bottles that have a GL 45 neck fi nish and is compatible with four bottle sizes 2, 5, 10 and 20 litres. It is ergonomically designed, and o ers health & safety benefi ts to the user and allows easy and safe transport of bottles around the laboratory or production facility. It makes pouring liquids from the larger bottles more comfortable and safer. All materials are fully autoclavable. [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/3"][vc_column_text]Carrying Handle- Carrying handle is suitable for bare or gloved hands
- Handle strap is fl exible enough to allow pouring
- With indicator arrow
- End modifi ed to prevent unthreading
- Ergonomically shaped
- Anti-slip grip
Silicone Support Base
- Structural support for base of larger 5, 10 and 20 litre bottles
- Protection of glass bottle base from impact during lifting or handling
- Spacer to protect glass from contact with Metal Dolly
- Moulded-in holes minimize liquid traps and allow maximum steam penetration during autoclaving
[/vc_column_text][/vc_column][vc_column width="1/3"][vc_column_text]GL 45 Bottle Collar
- The collar is securely attached by pushing down over the GL 45 thread with 4 teeth that lock under transfer ring.
- The collar is only removable by cutting – so attachment is 100% secure in use. A cut line indicator for removal of collar when required.
- Durable stitched construction
- Made from “anti-slip” material
Lot Specifi c Retrace Code
- for traceability and certifi cation
Optional Extra: Metal Dolly
- Stainless steel dolly for 10 or 20 litre bottles (2 sizes only)
- Fully compatible with carrying system
- Easy to clean, crevice-free construction
- Optional handle is available for easier handling
FOR EASY AND SAFE CARRYING & POURING
[/vc_column_text][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]
Easy and safe carrying using handle
- Handle attaches at the neck and fully supports the base
- For 2, 5, 10 and 20 litre bottles
Safe and controlled pouring using handle
- Safer pouring of liquids using a second lower“ Pouring Handle” located on the side strap
- Available on the 5 litre carriers only
4 sizes available: 2 L / 5 L / 10 L / 20 L
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]2 L bottle carrier in 4 colors
for color coding
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Ordering information
| Cat. No. | Description | Pack Unit |
| 292836307 | DURAN® GL 45 Bottle Carrying System for the 2 Litre DURAN® Bottle (Blue) | 1 |
| 292826306 | DURAN® GL 45 Bottle Carrying System for the 2 Litre DURAN® Bottle (Purple) | 1 |
| 292816305 | DURAN® GL 45 Bottle Carrying System for the 2 Litre DURAN® Bottle (Red) | 1 |
| 292806304 | DURAN® GL 45 Bottle Carrying System for the 2 Litre DURAN® Bottle (Yellow) | 1 |
| 292807309 | DURAN® GL 45 Bottle Carrying System for the 5 Litre DURAN® Bottle (Yellow) | 1 |
| 292808605 | DURAN® GL 45 Bottle Carrying System for the 10 Litre DURAN® Bottle (Yellow) | 1 |
| 292809104 | DURAN® GL 45 Bottle Carrying System for the 20 Litre DURAN® Bottle (Yellow) | 1 |
| 299018607 | DURAN® Metal Dolly for 10 L DURAN® GL 45 Bottle (Stainless steel) | 1 |
| 299038609 | DURAN® Handle for the 10 L Metal Dolly (Stainless steel) | 1 |
| 292808654 | DURAN® Silicone Bottle Base Protector for the 10 L Metal Dolly (Yellow) | 1 |
| 299019106 | DURAN® Metal Dolly for 20 L DURAN® GL 45 Bottle (Stainless steel) | 1 |
| 299039108 | DURAN® Handle for the 20 L Metal Dolly (Stainless steel) | 1 |
| 292809153 | DURAN® Silicone Bottle Base Protector for the 20 L Metal Dolly (Yellow) | 1 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Volumetric Flasks
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Volumetric Flasks[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DURAN® VOLUMETRIC FLASKS
Achieving precision through quality
Volume measurement – a routine laboratory procedure. All the more important is the assurance of quality in the associated instrumentation over the long term, from volumetric flasks to stoppers. From one day to the next, with each analysis. DURAN® volumetric instruments have the same attributes as DURAN® laboratory glassware: They are robust, virtually inert and exceptionally resistant to high temperatures. Outstanding corrosion protection also guarantees they are particularly cost effective.End-to-end production from a single source
Stringent specifications apply for the selection of raw materials and mixture preparation for the borosilicate glass 3.3. In addition, because DURAN® laboratory glassware is manufactured exclusively in-house, high quality is guaranteed. This applies to every manufacturing phase – from glass melting through to calibration. The result: outstanding precision during volumetric measurement.[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]now with printed graduation mark
SCREEN PRINT LABEL FOR DURAN® VOLUMETRIC FLASKS
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/2"][vc_column_text]Volumetric flask, accuracy class A, USP <31> conform
Volumetric flask, accuracy class A, with individual certificate
Volumetric flask, accuracy class A, with batch certificate
 |
United States Pharmacopoeia – the product satisfies the requirements specified in USP <31> |
 |
Certificated |
 |
Batch number, e.g. 15.01 |
 |
Nominal volume in ml |
| ±0.08ml | Accuracy tolerance - the deviation of the nominal volume must be no greater than this value which is specified in standards |
 |
Reference temperature - the temperature at which a volumetric instrument must achieve the nominal volume (20°C) stated on it |
 |
Country of origin |
 |
Accuacy class - denotes the accuracy limit |
| NS 14/23 | Standard taper joint size |
| ISO 1042 | Standard designation |
 |
Conformity mark - verifies compliance with the requirements of the German weights and measures regulation and applicable standards |
| AAA-0001 | Individual number (laser-etched onto the base) |
| DD.MM.YY | Production date (laser-etched onto the base) |
- Achieves precision due to better visibility of the printed graduation mark
- Print is highly resistant to chemicals
- Comply with the requirements of ISO 1042
- With new PE stopper – can be ordered separately
- Well-known DURAN® borosilicate glass 3.3 quality due to high internal raw material requirements
- Increased service life and cost-effectiveness
- Retraceable
- Auditable
OVERVIEW OF CERTIFICATES
[/vc_column_text][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Conformity mark DE-M
Volumetric instruments that comply with the requirements of applicable standards (e.g. the German weights and measures regulation) are labelled accordingly with “DE-M”. The “DE-M 18” mark is made up of the elements DE (which stands for “Deutschland”), M (which stands for “Metrologie” (metrology)), and the year number 18 (2018, the year in which the measuring instrument was labelled).[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_single_image image="3128" img_size="full"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Batch certificate
Volumetric flasks and measuring and mixing cylinders with a batch number and accuracy class A are supplied with a batch certificate. This certificate documents the mean value obtained from measuring the batch in question, the standard deviation and the day of issue. The batch certificates can also be retrieved online. The batch number consists of four digits, e.g.: The first two numbers specify the production year, and the following two numbers specify the batch.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_single_image image="3125" img_size="full"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Individual certificate
Volumetric flasks which are numbered individually, are supplied with an individual certificate. The individual number is permanently laser-etched onto the base of the volumetric flask and is entered on the corresponding certificate. The volume measured for the corresponding volumetric flask, the measurement uncertainty and the day of issue are documented on this certificate. The individual number is a consecutive number and comprises three letters and a four digit number, for example: AAA-0001.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_single_image image="3124" img_size="full"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]USP individual certificate
The volumetric flasks are labelled with an individual number. This is permanently laser-etched onto the base of the volumetric flask and is entered on the corresponding certificate. The accuracy limits for USP <31> compliant volumetric flasks are stricter than flasks conforming to ISO 1042 and therefore satisfy the requirements of the United States Pharmacopoeia (USP). The volume measured for the corresponding volumetric flask, the measurement uncertainty and the day of issue are documented on this certificate.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][vc_single_image image="3127" img_size="full"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]UKAS certificate
Our DURAN® volumetric gauges already meet the highest standards of accuracy, yet DURAN® now also provides a new range of volumetric gauges and graduated cylinders with a UKAS single certificate. This new volumetric instrument product line is tested and calibrated to the requirements of United Kingdom Accreditation Services (UKAS) and complies with ISO 17025, a standard for global comparability of test and calibration results.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="3126" img_size="full"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Ordering Information
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Volumetric Flask Class A without certificate of conformity" tab_id="CAWOConf"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® Volumetric Flask, class A, without certificate of conformity
with scribed graduation mark and octagonal stopper from PE, white printed image, with batch certificate, without certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Pack Unit |
| 216780704 | 5 | 22 | 70 | 7 ± 1 | 7/16 | 0.025 | 2 |
| 216780807 | 10 | 27 | 90 | 7 ± 1 | 7/16 | 0.025 | 2 |
| 216781203 | 20 | 39 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 |
| 216781409 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 |
| 216781709 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.06 | 2 |
| 216782405 | 100 | 60 | 170 | 13 ± 1 | 12/21 | 0.1 | 2 |
| 216782508 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.1 | 2 |
| 216783204 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 |
| 216783607 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 |
| 216784406 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.25 | 2 |
| 216785402 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.4 | 2 |
| 216786304 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 0.6 | 2 |
| 216787309 | 5000 | 215 | 475 | 38 ± 3 | 34/35 | 1.2 | 1 |
DURAN® Volumetric Flask, class A, batch certificate
with scribed graduation mark and ergonomic polyethylene stopper, blue printed image, with batch certificate and certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246780159 | 1 | 13 | 65 | 7 ± 1 | 7/16 | 0.025 | 2 | |
| 246780253 | 2 | 17 | 70 | 7 ± 1 | 7/16 | 0.025 | 2 | |
| 246780956 | 5 W | 22 | 70 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246781052 | 10 W | 27 | 90 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246781258 | 20 | 39 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246781455 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246781755 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.06 | 2 | |
| 246782451 | 100 | 60 | 170 | 13 ± 1 | 12/21 | 0.1 | 2 | |
| 246782554 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.1 | 2 | |
| 246783259 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246783653 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246784452 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.25 | 2 | |
| 246785457 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.4 | 2 | |
| 246785551 | 1000 W | 125 | 300 | 27.5 ± 2.5 | 29/32 | 0.6 | wide neck | 2 |
| 246786359 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 0.6 | 2 | |
| 246787355 | 5000 | 215 | 475 | 38 ± 3 | 34/35 | 1.2 | 1 |
DURAN® Volumetric Flask, class A, individual certificate
with scribed graduation mark and ergonomic polyethylene stopper, blue printed image, with individual certificate and certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246790151 | 1 | 13 | 65 | 7 ± 1 | 7/16 | 0.025 | 2 | |
| 246790254 | 2 | 17 | 70 | 7 ± 1 | 7/16 | 0.025 | 2 | |
| 246790957 | 5 W | 22 | 70 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246791053 | 10 W | 27 | 90 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246791259 | 20 | 39 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246791456 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246791756 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.06 | 2 | |
| 246792452 | 100 | 60 | 170 | 13 ± 1 | 12/21 | 0.1 | 2 | |
| 246792555 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.1 | 2 | |
| 246793251 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246793654 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246794453 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.25 | 2 | |
| 246795458 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.4 | 2 | |
| 246795552 | 1000 W | 125 | 300 | 27.5 ± 2.5 | 29/32 | 0.6 | wide neck | 2 |
| 246796351 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 0.6 | 2 | |
| 246797356 | 5000 | 215 | 475 | 38 ± 3 | 34/35 | 1.2 | 1 |
DURAN® Volumetric Flask, class A, USP conformity <31>, USP individual certificate
with scribed graduation mark and ergonomic polyethylene stopper, blue printed image, with USP individual certificate and certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246710958 | 5 W | 22 | 70 | 9 ± 1 | 10/19 | 0.02 | wide neck | 2 |
| 246711054 | 10 W | 27 | 90 | 9 ± 1 | 10/19 | 0.02 | wide neck | 2 |
| 246711457 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.03 | 2 | |
| 246711757 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.05 | 2 | |
| 246712556 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.08 | 2 | |
| 246713252 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.1 | 2 | |
| 246713655 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.12 | 2 | |
| 246714454 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.2 | 2 | |
| 246715459 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.3 | 2 | |
| 246716352 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 0.5 | 2 |
DURAN® Volumetric Flask, class B
with scribed graduation mark and ergonomic polyethylene stopper, white printed image Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class B, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246700957 | 5 W | 22 | 70 | 9 ± 1 | 10/19 | 0.08 | wide neck | 2 |
| 246701053 | 10 W | 27 | 90 | 9 ± 1 | 10/19 | 0.08 | wide neck | 2 |
| 246701259 | 20 | 39 | 110 | 9 ± 1 | 10/19 | 0.08 | 2 | |
| 246701456 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.08 | 2 | |
| 246701756 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.12 | 2 | |
| 246702555 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.2 | 2 | |
| 246703251 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.3 | 2 | |
| 246703654 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.3 | 2 | |
| 246704453 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.5 | 2 | |
| 246705458 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.8 | 2 | |
| 246706351 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 1.2 | 2 | |
| 246707356 | 5000 | 215 | 475 | 38 ± 3 | 34/35 | 2.4 | 1 |
DURAN® Volumetric Flask, class A, amber, batch certificate
with scribed graduation mark and ergonomic polyethylene stopper, white printed image, with batch certificate and certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246760954 | 5 W | 22 | 70 | 9±1 | 10/19 | 0.04 | wide neck | 2 |
| 246761059 | 10 W | 27 | 90 | 9±1 | 10/19 | 0.04 | wide neck | 2 |
| 246761256 | 20 | 39 | 110 | 9±1 | 10/19 | 0.04 | 2 | |
| 246761453 | 25 | 40 | 110 | 9±1 | 10/19 | 0.04 | 2 | |
| 246761753 | 50 | 50 | 140 | 11±1 | 12/21 | 0.06 | 2 | |
| 246762458 | 100 | 60 | 170 | 13±1 | 12/21 | 0.1 | 2 | |
| 246762552 | 100 | 60 | 170 | 13±1 | 14/23 | 0.1 | 2 | |
| 246763257 | 200 | 75 | 210 | 15.5±1.5 | 14/23 | 0.15 | 2 | |
| 246763651 | 250 | 80 | 220 | 15.5±1.5 | 14/23 | 0.15 | 2 | |
| 246764459 | 500 | 100 | 260 | 19±2 | 19/26 | 0.25 | 2 | |
| 246765455 | 1000 | 125 | 300 | 23±2 | 24/29 | 0.4 | 2 | |
| 246766357 | 2000 | 160 | 370 | 27.5±2.5 | 29/32 | 0.6 | 2 |
DURAN® Volumetric Flask, class A, amber, individual certificate
with scribed graduation mark and ergonomic polyethylene stopper, white printed image, with individual certificate and certificate of conformity Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. The volume content tolerances conform to accuracy class A, the accuracy limits of the German weights and measures regulations and DIN and ISO specifications. Typical applications: precise measurement of specified liquid amounts, preparation and storage of standard solutions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Neck | Stopper size | Accuracy unit (ml) | Remarks | Pack Unit |
| 246770955 | 5 W | 22 | 70 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246771051 | 10 W | 27 | 90 | 9 ± 1 | 10/19 | 0.04 | wide neck | 2 |
| 246771257 | 20 | 39 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246771454 | 25 | 40 | 110 | 9 ± 1 | 10/19 | 0.04 | 2 | |
| 246771754 | 50 | 50 | 140 | 11 ± 1 | 12/21 | 0.06 | 2 | |
| 246772459 | 100 | 60 | 170 | 13 ± 1 | 12/21 | 0.1 | 2 | |
| 246772553 | 100 | 60 | 170 | 13 ± 1 | 14/23 | 0.1 | 2 | |
| 246773258 | 200 | 75 | 210 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246773652 | 250 | 80 | 220 | 15.5 ± 1.5 | 14/23 | 0.15 | 2 | |
| 246774451 | 500 | 100 | 260 | 19 ± 2 | 19/26 | 0.25 | 2 | |
| 246775456 | 1000 | 125 | 300 | 23 ± 2 | 24/29 | 0.4 | 2 | |
| 246776358 | 2000 | 160 | 370 | 27.5 ± 2.5 | 29/32 | 0.6 | 2 |
DURAN® Polyethylene Stoppers
DURAN® polyethylene stoppers are ergonomically shaped. This ensures that measuring flasks, mixing cylinders and storage bottles can be easily opened and securely closed. Furthermore, a taper with several grooves ensures the perfect seal. The standard taper joint size can be easily and quickly assigned using stopper inserts with different colours.| Cat. No. | d1(OD) (mm) | d2(OD) (mm) | h (mm) | Colour | Stopper size | Pack Unit |
| 292050201 | 29.5 | 17.5 | 28 | blue | 7/16 | 10 |
| 292050304 | 32.5 | 20 | 32 | green | 10/19 | 10 |
| 292050407 | 36.5 | 22 | 35 | violet | 12/21 | 10 |
| 292050604 | 40 | 25 | 38 | yellow | 14/23 | 10 |
| 292050707 | 44.5 | 31 | 42 | blue | 19/26 | 10 |
| 292050801 | 51.5 | 38 | 46 | green | 24/29 | 10 |
| 292050904 | 61 | 45.5 | 50 | red | 29/32 | 10 |
| 292051103 | 71 | 54.5 | 54 | orange | 34/45 | 1 |
| 292051206 | 81.5 | 65.5 | 60 | brown | 45/40 | 1 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Beaker
{:en}[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Beaker[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]
Duran Beaker
DURAN beakers are widely used in laboratories. The low form is ideal for heating up contents on laboratory hotplates or Bunsen burners. The tall form is ideal for heating up contents in liquid or sand baths as the tall shape of the beaker protects its content from the surrounding medium. There is thus no risk of cross-contamination. Graduated beakers should not be used for volume measurement purposes as the printed scale only indicates the contents within a tolerance of +/-10%. [/vc_column_text][/vc_column][vc_column width="1/6"][/vc_column][vc_column width="1/6"][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="low form with spout" tab_id="lowformwspout"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]With easy-to-read scale and large labelling field for easy marking in fired-on, highly durable, white ceramic. Spout for clean pouring. Uniform wall thickness distribution makes these beakers ideal for heating applications.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Remarks | Pack Unit |
| 211060701 | 5 | 22 | 30 | Without graduation.Without Retrace Code. | 10 |
| 211060804 | 10 | 26 | 35 | Without graduation.Without Retrace Code. | 10 |
| 211061406 | 25 | 34 | 50 | 10 | |
| 211061706 | 50 | 42 | 60 | 10 | |
| 211062402 | 100 | 50 | 70 | 10 | |
| 211062908 | 150 | 60 | 80 | 10 | |
| 211063604 | 250 | 70 | 95 | 10 | |
| 211064103 | 400 | 80 | 110 | 10 | |
| 211064806 | 600 | 90 | 125 | 10 | |
| 211065305 | 800 | 100 | 135 | 10 | |
| 211065408 | 1000 | 105 | 145 | 10 | |
| 211066301 | 2000 | 132 | 185 | 10 | |
| 211066807 | 3000 | 152 | 210 | 4 | |
| 211067306 | 5000 | 170 | 270 | 1 | |
| 211068602 | 10000 | 217 | 350 | Non-DIN/ISO size. | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211161704 | 50 | 38 | 70 | 10 |
| 211162409 | 100 | 48 | 80 | 10 |
| 211162906 | 150 | 54 | 95 | 10 |
| 211163602 | 250 | 60 | 120 | 10 |
| 211164101 | 400 | 70 | 130 | 10 |
| 211164804 | 600 | 80 | 150 | 10 |
| 211165303 | 800 | 90 | 175 | 10 |
| 211165406 | 1000 | 95 | 180 | 10 |
| 211166308 | 2000 | 120 | 240 | 10 |
| 211166805 | 3000 | 135 | 280 | 2 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211171705 | 50 | 38 | 70 | 10 |
| 211172401 | 100 | 48 | 80 | 10 |
| 211172907 | 150 | 54 | 95 | 10 |
| 211173603 | 250 | 60 | 120 | 10 |
| 211174102 | 400 | 70 | 130 | 10 |
| 211174805 | 600 | 80 | 150 | 10 |
| 211175407 | 1000 | 95 | 180 | 10 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Remarks | Pack Unit |
| 211312409 | 100 | 52 | 85 | 10 | |
| 211312906 | 150 | 54 | 93 | 10 | |
| 211313602 | 250 | 70 | 94 | 10 | |
| 211314401 | 500 | 89 | 124 | 10 | |
| 211315406 | 1000 | 105 | 160 | 10 | |
| 211316308 | 2000 | 135 | 195 | 10 | |
| 211316805 | 3000 | 157 | 205 | 4 | |
| 211317304 | 5000 | 182 | 256 | 1 | |
| 211318609 | 10000 | 225 | 340 | Without graduation. | 1 |
| 211318806 | 15000 | 260 | 390 | Without graduation. | 1 |
| 211319108 | 20000 | 285 | 430 | Without graduation. | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211072909 | 150 | 60 | 80 | 10 |
| 211073605 | 250 | 70 | 95 | 10 |
| 211074104 | 400 | 80 | 110 | 10 |
| 211074807 | 600 | 90 | 125 | 10 |
| 211075409 | 1000 | 105 | 145 | 10 |
| 211076302 | 2000 | 132 | 185 | 10 |
| 211077307 | 5000 | 170 | 270 | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211182908 | 150 | 54 | 95 | 10 |
| 211183604 | 250 | 60 | 120 | 10 |
| 211184806 | 600 | 80 | 150 | 10 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211412904 | 150 | 59 | 87 | 10 |
| 211413609 | 250 | 68 | 105 | 10 |
| 211414408 | 500 | 86 | 142 | 10 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Pack Unit |
| 211260106 | 100 | 50 | 78 | 10 |
Related Products
[/vc_column_text][/vc_column][/vc_row]{:}{:zh}分类
■低型烧杯,有倾倒口 ■高型烧杯,有倾倒口 ■高型烧杯,无倾倒口 ■厚壁烧杯(过滤烧杯) ■低型烧杯加强型,有倾倒口,杯口加固 ■高型烧杯加强型,有倾倒口,杯口加固主页>耗材>玻璃器皿
DURAN®低型烧杯,有倾倒口
- 易读刻度线,烧制而成的陶瓷材质书写区域,面积大易标记,且经久耐用.
- 杯口无滴漏.
- 壁厚均匀分布,这些特性非常适合加热应用.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) | 注 |
| 211060701 | 5 | 22 | 30 | 没有刻度, 没有追溯码. |
| 211060804 | 10 | 26 | 35 | 没有刻度, 没有追溯码. |
| 211061406 | 25 | 34 | 50 | |
| 211061706 | 50 | 42 | 60 | |
| 211062402 | 100 | 50 | 70 | |
| 211062908 | 150 | 60 | 80 | |
| 211063604 | 250 | 70 | 95 | |
| 211064103 | 400 | 80 | 110 | |
| 211064806 | 600 | 90 | 125 | |
| 211065305 | 800 | 100 | 135 | |
| 211065408 | 1000 | 105 | 145 | |
| 211066301 | 2000 | 135 | 185 | |
| 211066807 | 3000 | 152 | 210 | |
| 211067306 | 5000 | 170 | 270 | |
| 211068602 | 10000 | 217 | 350 | 非DIN/ISO尺寸 |
DURAN®高型烧杯,有倾倒口
- 易读刻度线,烧制而成的陶瓷材质书写区域,面积大易标记,且经久耐用.
- 杯口无滴漏.
- 壁厚均匀分布,这些特性非常适合加热应用.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) |
| 211161704 | 50 | 38 | 70 |
| 211162409 | 100 | 48 | 80 |
| 211162906 | 150 | 54 | 95 |
| 211163602 | 250 | 60 | 120 |
| 211164101 | 400 | 70 | 130 |
| 211164804 | 600 | 80 | 150 |
| 211165303 | 800 | 90 | 175 |
| 211165406 | 1000 | 95 | 180 |
| 211166308 | 2000 | 120 | 240 |
| 211166805 | 3000 | 135 | 280 |
DURAN®高型烧杯,无倾倒口
- 易读刻度线,烧制而成的陶瓷材质书写区域,面积大易标记,且经久耐用.
- 杯口无滴漏.
- 壁厚均匀分布,这些特性非常适合加热应用.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) |
| 211171705 | 50 | 38 | 70 |
| 211172401 | 100 | 48 | 80 |
| 211172907 | 150 | 54 | 95 |
| 211173603 | 250 | 60 | 120 |
| 211174102 | 400 | 70 | 130 |
| 211174805 | 600 | 80 | 150 |
| 211175407 | 1000 | 95 | 180 |
DURAN®厚壁烧杯(过滤烧杯)
- 易读刻度线,烧制而成的陶瓷材质书写区域,面积大易标记,且经久耐用.
- 厚壁烧杯的抗机械强度显著增强.抗热冲击性能降低.
- 杯口无滴漏.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) | 注 |
| 211312409 | 100 | 52 | 85 | |
| 211312906 | 150 | 54 | 93 | |
| 211313602 | 250 | 70 | 94 | |
| 211314401 | 500 | 89 | 124 | |
| 211315406 | 1000 | 105 | 160 | |
| 211316308 | 2000 | 135 | 195 | |
| 211316805 | 3000 | 157 | 205 | |
| 211317304 | 5000 | 182 | 256 | |
| 211318609 | 10000 | 225 | 340 | 没有刻度 |
| 211318806 | 15000 | 260 | 390 | 没有刻度 |
| 211319108 | 20000 | 285 | 430 | 没有刻度 |
DURAN®低型烧杯加强型,有倾倒口,杯口加固
- 和普通烧杯相比,厚壁烧杯的抗机械强度显著增强.
- 杯口加固设计增强了其机械抗冲击性,降低了破碎的风险.
- 典型应用:载重情况下的应用.
- 注：推荐均匀,缓慢加热.标准的DURAN® 烧杯应用于高温加热,或者温度变化迅速.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) |
| 211072909 | 150 | 60 | 80 |
| 211073605 | 250 | 70 | 95 |
| 211074104 | 400 | 80 | 110 |
| 211074807 | 600 | 90 | 125 |
| 211075409 | 1000 | 105 | 145 |
| 211076302 | 2000 | 132 | 185 |
| 211077307 | 5000 | 170 | 270 |
DURAN®高型烧杯加强型,有倾倒口,杯口加固
- 和普通烧杯相比,厚壁烧杯的抗机械强度显著增强.
- 杯口加固设计增强了其机械抗冲击性,降低了破碎的风险.
- 典型应用:载重情况下的应用.
- 注：推荐均匀,缓慢加热.标准的DURAN® 烧杯应用于高温加热,或者温度变化迅速.
| 目录号 | 容量 (ml) | 直径 (mm) | 高度 (mm) |
| 211182908 | 150 | 54 | 95 |
| 211183604 | 250 | 60 | 120 |
| 211184806 | 600 | 80 | 150 |
DURAN® Measuring and Mixing Cylinder
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Measuring and Mixing Cylinder[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DURAN® measuring and mixing cylidners
Measuring cylinders are used to receive and at the same time to measure various quantities of liquid. Mixing cylinders can be used for diluting solutions and mixing several components in a given quantity ratio. DURAN meauring and mixing cylinders are very resistant to mechanical and thermal loads. The large hexagonal base with 3 knobs on its bottom increase stability and prevent the cylidner rolling away. The cylinders have the same wall thickness over the whole measuring range, ensuring linear scales. They are calibrated to contain("In") for a reference temperature of 20C. Accuracy limits for measuring and mixing cylidners are laid down in DIN12680, DIN12685 and ISO4788. DURAN® Measuring cylinders are available in two different accuracy classes – class “A” with main ring points graduation and class “B” with line graduation. For additional differentiation, the measuring cylinders with accuracy class ”A” have a blue graduation whereas the “B” class measuring cylinders a white graduation. The batch certificates for the mixing cylinders are also available to download online.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="Measuring cylinder Class A" tab_id="MCClassA"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® Measuring Cylinder with hexagonal base, class A
blue scale, ring graduations, with batch certificate and certificate of conformity The large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs which increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. Measuring cylinder accuracy limits conform to DIN and ISO standards. The batch certificates for the mixing cylinders are also available to download online. Typical applications: holding and simultaneous measurement of varying liquid amounts.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 213900701 | 5 | 12 | 112 | 0.05 | 0.1 | 2 |
| 213900804 | 10 | 14 | 137 | 0.1 | 0.2 | 2 |
| 213901406 | 25 | 21 | 167 | 0.25 | 0.5 | 2 |
| 213901706 | 50 | 25 | 196 | 0.5 | 1 | 2 |
| 213902402 | 100 | 29 | 256 | 0.5 | 1 | 2 |
| 213903604 | 250 | 39 | 331 | 1 | 2 | 2 |
| 213904403 | 500 | 53 | 360 | 2.5 | 5 | 2 |
| 213905408 | 1000 | 65 | 460 | 5 | 10 | 1 |
| 213906301 | 2000 | 85 | 500 | 10 | 20 | 1 |
DURAN® Measuring Cylinder with hexagonal base, class B
white scale, with graduation The large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs which increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. Measuring cylinder accuracy limits conform to DIN and ISO standards (class B). Typical applications: holding and simultaneous measurement of varying liquid amounts.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 213960707 | 5 | 12 | 112 | 0.1 | 0.1 | 2 |
| 213960801 | 10 | 14 | 137 | 0.2 | 0.2 | 2 |
| 213961403 | 25 | 21 | 167 | 0.5 | 0.5 | 2 |
| 213961703 | 50 | 25 | 196 | 1 | 1 | 2 |
| 213962408 | 100 | 29 | 256 | 1 | 1 | 2 |
| 213963601 | 250 | 39 | 331 | 2 | 2 | 2 |
| 213964409 | 500 | 53 | 360 | 5 | 5 | 2 |
| 213965405 | 1000 | 65 | 460 | 10 | 10 | 1 |
| 213966307 | 2000 | 85 | 500 | 20 | 20 | 1 |
DURAN® Mixing Cylinder with hexagonal base, class A
blue scale, ring graduations, with standard ground joint and ergonomic polyethylene stopper, with batch certificate and certificate of conformity The large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs which increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. Mixing cylinder accuracy limits conform to DIN and ISO standards. The batch certificates for the mixing cylinders are also available to download online. Typical applications: diluting solutions, mixing several components with specified proportions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Stopper size | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 246180856 | 10 | 14 | 156 | 10/19 | 0.1 | 0.2 | 2 |
| 246181458 | 25 | 21 | 190 | 14/23 | 0.25 | 0.5 | 2 |
| 246181758 | 50 | 25 | 222 | 19/26 | 0.5 | 1 | 2 |
| 246182454 | 100 | 29 | 287 | 24/29 | 0.5 | 1 | 2 |
| 246183656 | 250 | 39 | 363 | 29/32 | 1 | 2 | 2 |
| 246184455 | 500 | 53 | 395 | 34/35 | 2.5 | 5 | 2 |
| 246185451 | 1000 | 65 | 500 | 45/40 | 5 | 10 | 1 |
| 246186353 | 2000 | 85 | 540 | 45/40 | 10 | 20 | 1 |
DURAN® Mixing Cylinder with hexagonal base, class B
white scale, with graduation, standard ground joint and polypropylene octagonal stopper The large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs which increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. Mixing cylinder accuracy limits conform to DIN and ISO standards. Typical applications: diluting solutions, mixing several components with specified proportions.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Stopper size | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 216180801 | 10 | 14 | 156 | 10/19 | 0.2 | 0.2 | 2 |
| 216181403 | 25 | 21 | 190 | 14/23 | 0.5 | 0.5 | 2 |
| 216181703 | 50 | 25 | 222 | 19/26 | 1 | 1 | 2 |
| 216182408 | 100 | 29 | 287 | 24/29 | 1 | 1 | 2 |
| 216183601 | 250 | 39 | 363 | 29/32 | 2 | 2 | 2 |
| 216184409 | 500 | 53 | 395 | 34/35 | 5 | 5 | 2 |
| 216185405 | 1000 | 65 | 500 | 45/40 | 10 | 10 | 1 |
| 216186307 | 2000 | 85 | 540 | 45/40 | 20 | 20 | 1 |
DURAN® Measuring Cylinder with hexagonal base, class B, graduated low form
white scale, with graduation The large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs which increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on the poured in volume (“In”) at a + 20 °C reference temperature. Measuring cylinder accuracy limits conform to DIN and ISO standards (class B). Typical applications: holding and simultaneous measurement of varying liquid amounts.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 213950809 | 10 | 21 | 90 | 0.2 | 1 | 2 |
| 213951402 | 25 | 25 | 115 | 0.5 | 1 | 2 |
| 213951702 | 50 | 29 | 145 | 1 | 2 | 2 |
| 213952407 | 100 | 39 | 165 | 1 | 2 | 2 |
| 213953609 | 250 | 54 | 195 | 2 | 5 | 2 |
| 213954408 | 500 | 65 | 250 | 5 | 10 | 2 |
| 213955404 | 1000 | 85 | 285 | 10 | 20 | 1 |
| 213956306 | 2000 | 105 | 340 | 20 | 50 | 1 |
DURAN® SUPER DUTY Measuring Cylinder
low form, class B, with graduation and hexagonal base The DURAN® SUPER DUTY products are characterized by a higher mechanical strength achieved by reinforcing the rim. As a result of this modification, the impact strength is improved, and the risk of accidental breakage is significantly reduced. Application note: To avoid breakages due to thermal stress, uniform and slow heating of SUPER DUTY products is recommended.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | Accuracy limits (ml) | Graduation (ml) | Pack Unit |
| 213942406 | 100 | 39 | 168 | 1 | 2 | 2 |
| 213943608 | 250 | 54 | 205 | 2 | 5 | 2 |
| 213944407 | 500 | 66 | 253 | 5 | 10 | 2 |
| 213945403 | 1000 | 85 | 290 | 10 | 20 | 2 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Erlenmeyer Flask (Conical Flask)
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Erlenmeyer Flask (Conical Flask)[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]Typical uses for DURAN Erlenmeyer flasks include boiliing and swirling. They are also used as components in apparatus. Their shape makes them ideal for mixing and storing liquids.
An advantage of the conical shape is that there is little tendency for precipitates to stick to the inside surface as they slide down the wall with the rest of the contents. DURAN Erlenmeyer flasks are also used as culture flasks.[/vc_column_text][/vc_column][vc_column width="1/6"][/vc_column][vc_column width="1/6"][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="narrow neck" tab_id="narrowneck"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Erlenmeyer Flask
narrow neck With easy-to-read scale and large labelling field for easy marking in fired-on, highly durable, white ceramic. Due to conical form, suited to the mixing of liquids. Uniform wall thickness distribution makes these flasks ideal for heating applications.| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Remarks | Pack Unit |
| 212161407 | 25 | 42 | 22 | 75 | Without Retrace Code | 10 |
| 212161707 | 50 | 51 | 22 | 90 | 10 | |
| 212162403 | 100 | 64 | 22 | 105 | 10 | |
| 212162806 | 125 | 67 | 28 | 112 | 10 | |
| 219902702 | 150 | 74 | 28 | 118 | Non-DIN ISO size | 10 |
| 212163202 | 200 | 79 | 34 | 131 | Non-DIN ISO size | 10 |
| 212163605 | 250 | 85 | 34 | 145 | 10 | |
| 212163905 | 300 | 87 | 34 | 156 | Non-DIN ISO size | 10 |
| 212164404 | 500 | 105 | 34 | 180 | 10 | |
| 212165306 | 800 | 120 | 42 | 200 | 10 | |
| 212165409 | 1000 | 131 | 42 | 220 | 10 | |
| 212166302 | 2000 | 166 | 50 | 280 | 10 | |
| 212166808 | 3000 | 187 | 52 | 310 | 2 | |
| 212167307 | 5000 | 220 | 52 | 365 | 1 |
DURAN® Erlenmeyer Flask
wide neck With easy-to-read scale and large labelling field for easy marking in fired-on, highly durable, white ceramic. Due to conical form, suited to the mixing of liquids. Uniform wall thickness distribution makes these flasks ideal for heating applications. The wide neck enables easy filling and cleaning.| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Remarks | Pack Unit |
| 212261405 | 25 | 43 | 31 | 70 | Non-DIN EN ISO size | 10 |
| 212261705 | 50 | 51 | 34 | 85 | 10 | |
| 212262401 | 100 | 64 | 34 | 105 | 10 | |
| 212263209 | 200 | 79 | 50 | 131 | Non-DIN EN ISO size | 10 |
| 212263603 | 250 | 85 | 50 | 140 | 10 | |
| 212263903 | 300 | 87 | 50 | 156 | Non-DIN EN ISO size | 10 |
| 212264402 | 500 | 105 | 50 | 175 | 10 | |
| 212265407 | 1000 | 131 | 50 | 220 | 10 | |
| 212266309 | 2000 | 153 | 72 | 276 | Non-DIN EN ISO size | 10 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Pack Unit |
| 212171408 | 25 | 42 | 22 | 75 | 10 |
| 212171708 | 50 | 51 | 22 | 90 | 10 |
| 212172404 | 100 | 64 | 22 | 105 | 10 |
| 212173606 | 250 | 85 | 34 | 145 | 10 |
| 212174405 | 500 | 105 | 34 | 180 | 10 |
| 212175401 | 1000 | 131 | 42 | 220 | 10 |
| 212176303 | 2000 | 166 | 50 | 280 | 10 |
| 212177308 | 5000 | 220 | 52 | 365 | 1 |
DURAN® SUPER DUTY Erlenmeyer Flask
wide neck, with reinforced rim The DURAN® SUPER DUTY products are characterized by a higher mechanical strength achieved by reinforcing the rim. As a result of this modification, the impact strength is improved, and the risk of accidental breakage is significantly reduced. Application note: To avoid breakages due to thermal stress, uniform and slow heating of SUPER DUTY products is recommended.| Cat. No. | Capacity (ml) | d(OD) (mm) | d1OD) (mm) | h (mm) | Pack Unit |
| 212272402 | 100 | 64 | 34 | 105 | 10 |
| 212273604 | 250 | 85 | 50 | 140 | 10 |
| 212274403 | 500 | 105 | 50 | 175 | 10 |
| 212275408 | 1000 | 131 | 50 | 220 | 10 |
DURAN® Erlenmeyer Flask
with DIN thread With easy-to-read scale and large labelling field for easy marking in fired-on, highly durable, white ceramic. The flask can be closed with a PBT cap or membrane cap (permits gas exchange). Typical applications: The flask is suitable for storage, media preparation and cultivation.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | DIN Thread (GL) | Pack Unit |
| with PBT cap | |||||
| 218032451 | 100 | 64 | 109 | 25 | 10 |
| 218033653 | 250 | 85 | 149 | 32 | 10 |
| 218034452 | 500 | 105 | 180 | 32 | 10 |
| 218035457 | 1000 | 131 | 225 | 32 | 10 |
| without screw cap | |||||
| 218032402 | 100 | 64 | 105 | 25 | 10 |
| 218033604 | 250 | 85 | 145 | 32 | 10 |
| 218034403 | 500 | 105 | 175 | 32 | 10 |
| 218035408 | 1000 | 131 | 220 | 32 | 10 |
DURAN® Iodine Flask
Erlenmeyer shape, with standard ground joint and glass stopper With easy-to-read scale and large labelling field for easy marking in fired-on, highly durable, white ceramic. The flask can be closed with a glass stopper. Typical applications: the iodine flask is suitable for determining the iodine number, i.e. the content of unsaturated fatty acids in oils and fats.| Cat. No. | Capacity (ml) | d(OD) (mm) | h (mm) | DIN Thread (GL) | Pack Unit |
| 241922704 | 100 | 64 | 120 | 29/32 | 10 |
| 241923709 | 250 | 85 | 160 | 29/32 | 10 |
| 241924602 | 500 | 105 | 195 | 29/32 | 10 |
| 241925607 | 1000 | 131 | 235 | 29/32 | 10 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Desiccator
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Desiccator[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]
DESICCATORS
DURAN® desiccators are used for drying moist substances or as storage vessels for moisture-sensitive products. To accelerate the drying process, the desiccators can be used under vacuum. Due to the high wall-thickness of the vessels and the exact machining of the vacuum-tight ground joints on the lid and base, storage under vacuum is possible – even over extremely long periods. All individual parts and a wide range of accessories such as lids, stopcocks, bases, etc. are compatible and can be interchanged as required. Always ensure the individual parts have the same DN (nominal diameter). For desiccators, the DN is based on the diameter of the sieve plate; this can be measured directly. For lids, measure the outside diameter of the flange and crossreference with the tables on the product pages. Usage tips:- Designed for use under absolute vacuum.
- Due to the high wall thickness and the reduced thermal shock resistance under pressure loading, the desiccators must not be heated on one side only or heated using a naked flame.
- Before evacuation, it is recommended that the glass surfaces of the desiccator be checked for damage such as scratches, cracks or nicks. Damaged desiccators must not be used for safety reasons.
- Never expose desiccators to abrupt pressure changes (do not suddenly ventilate evacuated vessels).
DURAN® Vacuum Desiccator
with NOVUS standard ground joint (NS 24/29) junction tube in the lid, stopcock, and flat flange Vacuum-tight, made from DURAN® borosilicate glass 3.3. To accelerate drying, a vacuum can be applied via the stopcock. Spare parts such as lids, bases, stopcocks and caps can be interchanged (observe DN). Typical applications: drying of moist samples and storage of moisture-sensitive substances.| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Tubulature (NS) | Volume approx. (mL) | Pack Unit |
| with porcelain plate | |||||||
| 247825752 | 150 | 172 | 215 ± 2 | 239 | 24/29 | 2400 | 1 |
| 247826157 | 200 | 224 | 270 ± 2 | 296 | 24/29 | 5800 | 1 |
| 247826654 | 250 | 274 | 320 ± 2 | 344 | 24/29 | 10500 | 1 |
| 247826954 | 300 | 332 | 380 ± 2 | 420 | 24/29 | 18500 | 1 |
| without porcelain plate | |||||||
| 247824604 | 100 | 119 | 153 ± 2 | 174 | 24/29 | 700 | 1 |
| 247825703 | 150 | 172 | 215 ± 2 | 239 | 24/29 | 2400 | 1 |
| 247826108 | 200 | 224 | 270 ± 2 | 296 | 24/29 | 5800 | 1 |
| 247826605 | 250 | 274 | 320 ± 2 | 344 | 24/29 | 10500 | 1 |
| 247826905 | 300 | 332 | 380 ± 2 | 420 | 24/29 | 18500 | 1 |
DURAN® Vacuum Dessicator Set
with threaded outlet, type MOBILEX (GL 32), stopcock with PTFE spindle DURAN® desiccators completed with a porcelain plate and a vacuum connection. Porcelain plate and the lid diameter correspond to the diameter of the base and vacuum connection remains air tight. Typical applications: drying of moist samples and storage of moisture-sensitive substances.| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | Thread | h (mm) | Volume approx. (mL) | Pack Unit |
| with porcelain plate | |||||||
| 247835753 | 150 | 172 | 215 ± 2 | 32 | 239 | 2400 | 1 |
| 247836158 | 200 | 224 | 270 ± 2 | 32 | 296 | 5800 | 1 |
| 247836655 | 250 | 274 | 320 ± 2 | 32 | 344 | 10500 | 1 |
| 247836955 | 300 | 332 | 380 ± 2 | 32 | 420 | 18500 | 1 |
| without porcelain plate | |||||||
| 247855706 | 150 | 172 | 215 ± 2 | 32 | 239 | 2400 | 1 |
| 247856102 | 200 | 224 | 270 ± 2 | 32 | 296 | 5800 | 1 |
| 247856608 | 250 | 274 | 320 ± 2 | 32 | 344 | 10500 | 1 |
| 247856908 | 300 | 332 | 380 ± 2 | 32 | 420 | 18500 | 1 |
DURAN® Vacuum Desiccator
with screw thread outlet, type MOBILEX (GL 32), with screw cap from PBT DURAN® desiccators completed with a desiccator lid and a screw cap. Typical applications: drying of moist samples and storage of moisture-sensitive substances.| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | Thread | h (mm) | Volume approx. (mL) | Pack Unit |
| without porcelain plate | |||||||
| 247865707 | 150 | 172 | 215 ± 2 | 32 | 239 | 2400 | 1 |
| 247866103 | 200 | 224 | 270 ± 2 | 32 | 296 | 5800 | 1 |
| 247866609 | 250 | 274 | 320 ± 2 | 32 | 344 | 10500 | 1 |
| 247866909 | 300 | 332 | 380 ± 2 | 32 | 420 | 18500 | 1 |
DURAN® Desiccator
with flat flange, and knobbed lid, no connection Made from DURAN® borosilicate glass 3.3. Components are vacuum tight. Spare parts such as lids and bases can be interchanged (observe DN). Typical applications: drying of moist products and storage of moisture-sensitive substances.| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Volume approx. (mL) | Pack Unit |
| 247814603 | 100 | 119 | 153 ± 2 | 187 | 700 | 1 |
| 247815702 | 150 | 172 | 215 ± 2 | 252 | 2 400 | 1 |
| 247816107 | 200 | 224 | 270 ± 2 | 309 | 5 800 | 1 |
| 247816604 | 250 | 274 | 320 ± 2 | 357 | 10 500 | 1 |
| 247816904 | 300 | 332 | 380 ± 2 | 433 | 18 500 | 1 |
DURAN® Desiccator Base
with flat flange, no outlet, suitable for all types of lids| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | h1 (mm) | Volume approx. (mL) | Pack Unit |
| 247704604 | 100 | 119 | 153 ± 2 | 112 | 58 | 700 | 1 |
| 247705703 | 150 | 172 | 215 ± 2 | 154 | 81 | 2400 | 1 |
| 247706108 | 200 | 224 | 270 ± 2 | 202 | 115 | 5800 | 1 |
| 247706605 | 250 | 274 | 320 ± 2 | 235 | 120 | 10500 | 1 |
| 247706905 | 300 | 332 | 332 ± 2 | 283 | 150 | 18500 | 1 |
DURAN® Desiccator Base
with ring-grooved flange, suitable for all types of lids| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | h1 (mm) | Volume approx. (ml) | Pack Unit |
| 247736102 | 200 | 224 | 270 ± 2 | 202 | 115 | 5800 | 1 |
DURAN® Desiccator Base
with flat flange, standard ground outlet (24/29), type NOVUS, suitable for all types of lids| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | h1 (mm) | Volume approx. (ml) | Pack Unit |
| 247714605 | 100 | 119 | 153 ± 2 | 112 | 58 | 700 | 1 |
| 247715704 | 150 | 172 | 215 ± 2 | 154 | 81 | 2400 | 1 |
| 247716109 | 200 | 224 | 270 ± 2 | 202 | 118 | 5800 | 1 |
| 247716606 | 250 | 274 | 320 ± 2 | 235 | 122 | 10500 | 1 |
| 247716906 | 300 | 332 | 380 ± 2 | 283 | 154 | 18500 | 1 |
DURAN® Desiccator Base
with flat flange, screw thread outlet, type MOBILEX (GL 32), suitable for all types of lids| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | h1 (mm) | Volume approx. (ml) | Pack Unit |
| 247725705 | 150 | 172 | 215 ± 2 | 154 | 81 | 2400 | 1 |
| 247726101 | 200 | 224 | 270 ± 2 | 202 | 118 | 5800 | 1 |
| 247726607 | 250 | 274 | 320 ± 2 | 235 | 122 | 10500 | 1 |
| 247726907 | 300 | 332 | 380 ± 2 | 283 | 154 | 18500 | 1 |
DURAN® Desiccator Lid
with knob, suitable for all types of bases| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Pack Unit |
| 244104607 | 100 | 119 | 153 ± 2 | 75 | 1 |
| 244105706 | 150 | 172 | 215 ± 2 | 98 | 1 |
| 244106102 | 200 | 224 | 270 ± 2 | 107 | 1 |
| 244106608 | 250 | 274 | 320 ± 2 | 122 | 1 |
| 244106908 | 300 | 332 | 380 ± 2 | 150 | 1 |
DURAN® Desiccator Lid
with special tube (NS 24/29 type WERTEX), with ring grooved flange, suitable for all types of bases| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Neck | Pack Unit |
| 244305702 | 150 | 172 | 215 ± 2 | 85 | 24/29 | 1 |
| 244306604 | 250 | 274 | 320 ± 2 | 109 | 24/29 | 1 |
DURAN® Desiccator Lid
for standard ground joint stopcocks (NS 24/29), type NOVUS, suitable for all types of bases| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Neck | Pack Unit |
| 244204605 | 100 | 119 | 153 ± 2 | 62 | 24/29 | 1 |
| 244205704 | 150 | 172 | 215 ± 2 | 85 | 24/29 | 1 |
| 244206109 | 200 | 224 | 270 ± 2 | 94 | 24/29 | 1 |
| 244206606 | 250 | 274 | 320 ± 2 | 109 | 24/29 | 1 |
| 244206906 | 300 | 332 | 380 ± 2 | 137 | 24/29 | 1 |
DURAN® Desiccator Lid
with threaded outlet, type MOBILEX (GL 32), suitable for all bases| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | Neck | Pack Unit |
| 244405709 | 150 | 172 | 215 ± 2 | 32 | 85 | 1 |
| 244406105 | 200 | 224 | 270 ± 2 | 32 | 94 | 1 |
| 244406602 | 250 | 274 | 320 ± 2 | 32 | 109 | 1 |
| 244406902 | 300 | 332 | 380 ± 2 | 32 | 137 | 1 |
Porcelain Desiccator Plate
| Cat. No. | DN | d(OD) (mm) | Pack Unit |
| 297254608 | 100 | 90 | 1 |
| 297255707 | 150 | 140 | 1 |
| 297256103 | 200 | 190 | 1 |
| 297256609 | 250 | 235 | 1 |
| 297256909 | 300 | 280 | 1 |
Stainless Steel Desiccator Plate
Material: 1.4301, Type 304, rust-free| Cat. No. | DN | d(OD) (mm) | Pack Unit |
| 290804606 | 100 | 90 | 1 |
| 290805705 | 150 | 140 | 1 |
| 290806101 | 200 | 190 | 1 |
| 290806607 | 250 | 235 | 1 |
| 290806907 | 300 | 285 | 1 |
DURAN® Stopcock with PTFE Spindle
for threaded outlets, type MOBILEX (GL 32)| Cat. No. | d(OD)(mm) | l(mm) | Pack Unit |
| 247970305 | 8 | 160 | 1 |
DURAN® Stopcock with PTFE Spindle
for desiccator lid outlets, type NOVUS (NS 24/29)| Cat. No. | d(OD)(mm) | l(mm) | Neck | Pack Unit |
| 247990401 | 8 | 85 | 24/29 | 1 |
DURAN® Stopcock with PTFE Spindle
for desiccator base side outlets, type NOVUS (NS 24/29)| Cat. No. | d(OD)(mm) | l(mm) | Neck | Pack Unit |
| 247980306 | 8 | 85 | 24/29 | 1 |
Safety Stopcock NS 24/29
for safety outlets type Wertex| Cat. No. | h(mm) | l(mm) | Pack Unit |
| 247960304 | 76 | 70 | 1 |
O-Ring
suitable only for desiccator Base with ring-grooved flange, from silicone (VMQ)| Cat. No. | DN | d(OD) (mm) | s (mm) | Pack Unit |
| 292156108 | 200 | 236 | 5.3 | 1 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Measuring Pipette (Graduated Pipette)
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Measuring Pipette (Graduated Pipette)[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="3/4"][vc_row_inner][vc_column_inner][vc_column_text]
DURAN® Measuring Pipette (Graduated Pipette)
Pipettes are manufactured from soda-lime glass. They are used for the precise measurement and decanting of liquids. Full pipettes only allow filling to specific quantities. Measuring pipettes allow different quantities of liquids to be held and dispensed in portions of the same size or different sizes. Calibration of the pipettes and burettes is based on the discharged volume (“Ex”) at a reference temperature of 20°C. This means that the quantities can be withdrawn precisely as shown on the scale as the adhesion of the liquid to the glass has been taken into account during calibration. Conformity mark DE-M – The conformity mark confirms that the instruments satisfy the requirements of the German weights and measures regulation and the applicable standards. Batch certificate – Pipettes and burettes in the accuracy class AS have a batch number and are supplied with a batch certificate. This certificate documents the mean value obtained from measuring the batch in question, the standard deviation and the day of issue. The batch certificates can also be retrieved online. The batch number consists of four digits, for example: 18.01. The first two numbers specify the production year, and the following two numbers specify the batch.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width="1/4"][vc_column_text]Screen print label for pipettes
[/vc_column_text][/vc_column_inner][vc_column_inner width="3/4"][vc_column_text]Explanations
|
Batch number, e.g. 15.01 |
|
Conformity mark – verifies compliance with the requirements of the German weights and measures regulation and applicable standards. |
| 10 | Nominal volume in ml |
| ±0.05ml | Accuracy limit – the deviation of the nominal volume must be no greater than this value which is specified in standards |
| 20°C | Reference temperature – the temperature at which a volumetric instrument must achieve the nominal volume (20°C) stated on it. |
| AS | Accuracy class – denotes the accuracy limit |
| ISO 835 | Standard designation |
| Ex | Calibration based on discharged volume. The quantity of liquid discharged corresponds to the volume specification printed on the product, e.g. pipettes, burettes. The remaining liquid on the walls of the vessel or in the tip is also taken into consideration. |
| Ex + 5 | Waiting time. Allow to discharge and wait 30 seconds. It is important to comply with the specified waiting time to prevent measurement errors |
 |
Total measurement volume – scale increment is specified below |
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DIFFERENCE TYPE OF MEASURING PIPETTES
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]MEASURING PIPETTE TYPE 1- Drain-out
- zero at top
- Blow-out
- zero at bottom
- graduated to tip (total delivery)
- Blow-out
- zero at top
- graduated to tip (total delivery)
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
MEASURING PIPETTES TYPE 1
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Class AS Batch cert Blue print" tab_id="1535691820872-f0483baf-030a"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Measuring Pipette from Soda-lime Glass, class AS, type 1
blue printed image, Drain-out, zero at top, with main graduations as circular divisions and cotton plug, with certificate of conformity and With batch certificate Numbering from the top down. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Pack Unit |
| 233460606 | 0.5 | 360 | 0.006 | 0.01 | 3 x yellow | 12 |
| 233461105 | 1 | 360 | 0.007 | 0.01 | 2 x yellow | 12 |
| 233461602 | 2 | 360 | 0.01 | 0.02 | 2 x black | 12 |
| 233462307 | 5 | 360 | 0.03 | 0.05 | 2 x red | 12 |
| 233462907 | 10 | 360 | 0.05 | 0.1 | 2 x orange | 12 |
| 233463209 | 20 | 360 | 0.1 | 0.1 | 3 x yellow | 6 |
| 233463406 | 25 | 450 | 0.1 | 0.1 | 2 x white | 6 |
| 233463603 | 50 | 450 | 0.2 | 0.2 | 2 x black | 6 |
Measuring Pipette from Soda-lime Glass, class B, type 1
Brown diffusion print, drain-out, zero at top, graduated, with cotton plug Numbering from the top down. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Remarks | Pack Unit |
| 243430102 | 0.1 | 360 | 0.01 | 0.001 | 3 x green | Non-ISO size, calibrated to contain (“Ex”). | 12 |
| 243430308 | 0.2 | 360 | 0.01 | 0.001 | 3 x blue | Non-ISO size, calibrated to contain (“Ex”). | 12 |
| 243430608 | 0.5 | 360 | 0.008 | 0.01 | 3 x yellow | 12 | |
| 243431107 | 1 | 360 | 0.008 | 0.01 | 2 x yellow | 12 | |
| 243431604 | 2 | 360 | 0.015 | 0.02 | 2 x black | 12 | |
| 243432309 | 5 | 360 | 0.04 | 0.05 | 2 x red | 12 | |
| 243432909 | 10 | 360 | 0.08 | 0.1 | 2 x orange | 12 | |
| 243433408 | 25 | 450 | 0.15 | 0.1 | 2 x white | 12 |
MEASURING PIPETTES TYPE 2
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Class AS Batch cert Brown print" tab_id="2ASbatchbrown"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Measuring Pipette from Soda-lime Glass, class AS, type 2
brown inscription, Blow-out, zero at bottom, graduated to tip (total delivery), with main graduations as circular divisions and cotton plug, with certificate of conformity and batch certificate Numbering: zero at bottom. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Pack Unit |
| 233470607 | 0.5 | 360 | 0.006 | 0.01 | 2 x yellow | 12 |
| 233471106 | 1 | 360 | 0.007 | 0.01 | 1 x yellow | 12 |
| 233471603 | 2 | 360 | 0.01 | 0.02 | 1 x black | 12 |
| 233472308 | 5 | 360 | 0.03 | 0.05 | 1 x red | 12 |
| 233472908 | 10 | 360 | 0.05 | 0.1 | 1 x orange | 12 |
| 233473201 | 20 | 360 | 0.1 | 0.1 | 2 x yellow | 6 |
| 233473407 | 25 | 450 | 0.1 | 0.1 | 1 x white | 6 |
| 233473604 | 50 | 450 | 0.2 | 0.2 | 1 x black | 6 |
Measuring Pipette from Soda-lime Glass, class AS, type 2
blue inscription, Blow-out, zero at bottom, graduated to tip (total delivery), with main graduations as circular divisions and cotton plug, with certificate of conformity and batch certificate Numbering: zero at bottom. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Pack Unit |
| 233480608 | 0.5 | 360 | 0.006 | 0.01 | 2 x yellow | 12 |
| 233481107 | 1 | 360 | 0.007 | 0.01 | 1 x yellow | 12 |
| 233481604 | 2 | 360 | 0.01 | 0.02 | 1 x black | 12 |
| 233482309 | 5 | 360 | 0.03 | 0.05 | 1 x red | 12 |
| 233482909 | 10 | 360 | 0.05 | 0.1 | 1 x orange | 12 |
| 233483202 | 20 | 360 | 0.1 | 0.1 | 2 x yellow | 6 |
| 233483408 | 25 | 450 | 0.1 | 0.1 | 1 x white | 6 |
| 233483605 | 50 | 450 | 0.2 | 0.2 | 1 x black | 6 |
MEASURING PIPETTES TYPE 3
[/vc_column_text][vc_tta_tabs][vc_tta_section title="Class AS Batch cert Brown print" tab_id="3ASbatchbrown"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]Measuring Pipette from Soda-lime Glass, class AS, type 3
Brown diffusion print, blow-out, zero at top, with ring graduations, with cotton plug, with batch certificate and certificate of conformity Numbering from the top down. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Pack Unit |
| 243451109 | 1 | 360 | 0.007 | 0.01 | 1 x yellow | 12 |
| 243451709 | 2 | 360 | 0.01 | 0.02 | 1 x black | 12 |
| 243452302 | 5 | 360 | 0.03 | 0.05 | 1 x red | 12 |
| 243452902 | 10 | 360 | 0.05 | 0.1 | 1 x orange | 12 |
| 243453401 | 25 | 450 | 0.1 | 0.1 | 1 x white | 12 |
Measuring Pipette from Soda-lime Glass, class AS, type 3
blue inscription, Blow-out, zero at top, graduated to tip (total delivery), with main graduations as circular divisions and cotton plug, with certificate of conformity and batch certificate Numbering from the top down. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Pack Unit |
| 233490609 | 0.5 | 360 | 0.006 | 0.01 | 2 x yellow | 12 |
| 233491108 | 1 | 360 | 0.007 | 0.01 | 1 x yellow | 12 |
| 233491605 | 2 | 360 | 0.01 | 0.02 | 1 x black | 12 |
| 233492301 | 5 | 360 | 0.03 | 0.05 | 1 x red | 12 |
| 233492901 | 10 | 360 | 0.05 | 0.1 | 1 x orange | 12 |
| 233493203 | 20 | 360 | 0.1 | 0.1 | 2 x yellow | 6 |
| 233493409 | 25 | 450 | 0.1 | 0.1 | 1 x white | 6 |
| 233493606 | 50 | 450 | 0.2 | 0.2 | 1 x black | 6 |
Measuring Pipette from soda-lime glass, class B, type 3
Brown diffusion print, blow-out, zero at top, graduated, with cotton plug Numbering from the top down. Calibration is based on the poured out volume (“Ex”) at a + 20 °C reference temperature. Due to the scale, variable volumes can be held and then dispensed in the same or differing increments. Typical applications: accurate measurement and decanting of liquids.| Cat. No. | Capacity (ml) | l (mm) | Accuracy limits (ml) | Graduation (ml) | Colour code DIN 12621 | Remarks | Pack Unit |
| 243440103 | 0.1 | 360 | 0.01 | 0.001 | 2 x green | calibrated to contain (“Ex”). | 12 |
| 243440309 | 0.2 | 360 | 0.01 | 0.001 | 2 x blue | calibrated to contain (“Ex”). | 12 |
| 243440609 | 0.5 | 360 | 0.008 | 0.01 | 2 x yellow | 12 | |
| 243441108 | 1 | 360 | 0.008 | 0.01 | 1 x yellow | 12 | |
| 243441605 | 2 | 360 | 0.015 | 0.02 | 1 x black | 12 | |
| 243442301 | 5 | 360 | 0.04 | 0.05 | 1 x red | 12 | |
| 243442901 | 10 | 360 | 0.08 | 0.1 | 1 x orange | 12 | |
| 243443409 | 25 | 450 | 0.15 | 0.1 | 1 x white | 12 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Filtering Flask
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Filtering Flask[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]
DURAN® Filtering Flask
Filtering flasks are used for drawing off liquids and vacuum filtration. DURAN filtering flasks- available in both conical and bottle form.
- appropriate pressure tested to ensure that items are suitable for use under vacuum.
- 3 types hose connection: KECK Assembly set, glass hose connection and side-arm socket
- DURAN filtering flasks with KECK Assembly set provide protection and safety for laboratory workers and the laboratory. Their design makes it easier to fit and remove the vacuum tubing. There is also less risks of breakage in the dishwashing machine so that they have a longer service life.
DURAN filtering flask with Keck Assembly set connection
DURAN fitlering flask side-arm socket
DURAN filtering flask with glass hose connection
[/vc_column_text][/vc_column][vc_column width="1/6"][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="KECK Assembly Set" tab_id="keck"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]DURAN® Filtering Flask with KECK™ Assembly Set Heavy walled for vacuum use. These filtering flasks fulfil the regulations of the ”equipment and product safety regulations“. The plastic hose connection is replaceable. Typical application: Separations by vacuum filtration.| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Hose connection d(OD)(mm) | Pack Unit |
| Erlenmeyer shape (Conical flask shape) | ||||||
| 212042452 | 100 | 64 | 24 | 105 | 9 | 10 |
| 212043654 | 250 | 85 | 34 | 155 | 9 | 10 |
| 212044453 | 500 | 105 | 34 | 185 | 9 | 10 |
| 212045458 | 1000 | 135 | 45 | 230 | 9 | 10 |
| 212046351 | 2000 | 166 | 60 | 255 | 9 | 1 |
| Bottle shape | ||||||
| 211946854 | 3000 | 170 | 58 | 295 | 9 | 1 |
| 211947353 | 5000 | 185 | 68 | 360 | 9 | 1 |
| 211948658 | 10000 | 240 | 70 | 420 | 9 | 1 |
| 211948855 | 15000 | 257 | 70 | 500 | 9 | 1 |
| 211949157 | 20000 | 290 | 70 | 535 | 9 | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Pack Unit |
| 211833603 | 250 | 85 | 34 | 155 | 10 |
| 211834402 | 500 | 105 | 34 | 185 | 10 |
| 211835407 | 1000 | 135 | 45 | 230 | 10 |
| 211836309 | 2000 | 166 | 60 | 255 | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Pack Unit |
| 211936804 | 3000 | 170 | 58 | 295 | 1 |
| 211937303 | 5000 | 185 | 68 | 360 | 1 |
| 211938608 | 10000 | 240 | 70 | 420 | 1 |
| 211938805 | 15000 | 255 | 70 | 500 | 1 |
| 211939107 | 20000 | 290 | 70 | 535 | 1 |
DURAN® filtering flask with glass hose connection
Due to the heavy wall thickness the apparatus is vacuum-tight. For suitable rubber seals, please refer to Filtering Flask Accessories
Typical applications: Separations by vacuum filtration.
| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | h (mm) | Hose connection d(OD)(mm) | Pack Unit |
| Erlenmeyer shape (Conical flask shape) | ||||||
| 212012409 | 100 | 64 | 24 | 105 | 11 | 10 |
| 212013602 | 250 | 85 | 34 | 155 | 11 | 10 |
| 212014401 | 500 | 105 | 34 | 185 | 11 | 10 |
| 212015406 | 1000 | 135 | 45 | 230 | 11 | 10 |
| 212016308 | 2000 | 166 | 60 | 255 | 11 | 1 |
| Bottle shape | ||||||
| 211916802 | 3000 | 170 | 58 | 295 | 11 | 1 |
| 211917301 | 5000 | 185 | 68 | 360 | 11 | 1 |
| 211918606 | 10000 | 240 | 70 | 420 | 11 | 1 |
| 211918803 | 15000 | 255 | 70 | 500 | 11 | 1 |
| 211919105 | 20000 | 290 | 70 | 535 | 11 | 1 |
Erlenmeyer shape (Conical flask shape)
Bottle shape
| Cat. No. | Hose connection d (OD) (mm) | Pack Unit |
| 292585407 | 9 | 10 |
| Cat. No. | Description | Pack Unit |
| 292020001 | 8 Guko gaskets, size 22 to 84 | 1 |
| Cat.No. | d1(OD) (mm) | d2(OD) (mm) | h (mm) | s (mm) | Pack Unit |
| 292021203 | 22 | 12 | 18 | 2.5 | 10 |
| 292021709 | 29 | 16 | 23 | 3.5 | 10 |
| 292022302 | 36 | 22 | 25 | 3.5 | 10 |
| 292022705 | 44 | 27 | 30 | 4 | 10 |
| 292023204 | 53 | 33 | 35 | 4.5 | 10 |
| 292023607 | 63 | 43 | 35 | 5 | 10 |
| 292023907 | 73 | 52 | 37 | 5 | 10 |
| 292024303 | 84 | 61 | 40 | 5.5 | 10 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
Duran® Test Tube
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>Duran® Test Tube[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]DURAN® Test Tube
Test tube are used for simple esperoments, in particular for qualitative chemical analyses. These are available in a variety of sizes.
Test tube sizes are only roughly matched to a particular capacity. The exact capacity does not matter. There is, therfore, no need for any indication of capacity or calibration. The crucial factor when carrying out test tube experiments is generally the change of that occurs to the contents, e.g. any change in colour.
DURAN® test tubes are available with or without beaded rim. If the contents are frequently poured out or shaken, it is advisable to use test tubes with beaded rim.[/vc_column_text][/vc_column][vc_column width="1/6"][/vc_column][vc_column width="1/6"][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="DURAN® Test Tube" tab_id="Duran"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DURAN® Test Tube
with beaded rim or straight rim The test tubes are thick-walled and therefore mechanically very resistant, yet still retain good thermal shock resistance.| Cat. No. | d(OD) (mm) | h (mm) | Volume approx. (mL) | Wall thickness (mm) | Pack Unit |
| beadedrim | |||||
| 261300105 | 8 | 70 | 2 | 0.8 – 1.0 | 100 |
| 261300302 | 10 | 75 | 4 | 0.8 – 1.0 | 100 |
| 261300602 | 10 | 100 | 5 | 0.8 – 1.0 | 100 |
| 261300808 | 12 | 75 | 6 | 0.8 – 1.0 | 100 |
| 261301101 | 12 | 100 | 8 | 0.8 – 1.0 | 100 |
| 261301204 | 13 | 100 | 9 | 0.8 – 1.0 | 100 |
| 261301307 | 14 | 130 | 16 | 0.8 – 1.0 | 100 |
| 261301607 | 16 | 130 | 17 | 1.0 – 1.2 | 100 |
| 261302106 | 16 | 160 | 21 | 1.0 – 1.2 | 100 |
| 261302303 | 18 | 180 | 32 | 1.0 – 1.2 | 100 |
| 261302603 | 20 | 150 | 34 | 1.0 – 1.2 | 100 |
| 261302809 | 20 | 180 | 40 | 1.0 – 1.2 | 100 |
| 261303308 | 25 | 150 | 55 | 1.0 – 1.2 | 50 |
| 261303608 | 25 | 200 | 70 | 1.0 – 1.2 | 50 |
| 261303805 | 30 | 200 | 100 | 1.0 – 1.4 | 50 |
| straightrim | |||||
| 261310106 | 8 | 70 | 2 | 0.8 – 1.0 | 100 |
| 261310303 | 10 | 75 | 4 | 0.8 – 1.0 | 100 |
| 261310603 | 10 | 100 | 5 | 0.8 – 1.0 | 100 |
| 261310809 | 12 | 75 | 6 | 0.8 – 1.0 | 100 |
| 261311102 | 12 | 100 | 8 | 0.8 – 1.0 | 100 |
| 261311205 | 13 | 100 | 9 | 0.8 – 1.0 | 100 |
| 261311308 | 14 | 130 | 16 | 0.8 – 1.0 | 100 |
| 261311608 | 16 | 130 | 17 | 1.0 – 1.2 | 100 |
| 261312107 | 16 | 160 | 21 | 1.0 – 1.2 | 100 |
| 261312304 | 18 | 180 | 32 | 1.0 – 1.2 | 100 |
| 261312604 | 20 | 150 | 34 | 1.0 – 1.2 | 100 |
| 261312801 | 20 | 180 | 40 | 1.0 – 1.2 | 100 |
| 261313309 | 25 | 150 | 55 | 1.0 – 1.2 | 50 |
| 261313609 | 25 | 200 | 70 | 1.0 – 1.2 | 50 |
| 261313806 | 30 | 200 | 100 | 1.0 – 1.4 | 50 |
Fiolax® Borosilicate Test Tube
with beaded rim Thin-walled test tubes suited to rapid temperature changes or localized heating.| Cat. No. | d(OD) (mm) | h (mm) | Volume approx. (mL) | Wall thickness (mm) | Pack Unit |
| 261100109 | 8 | 70 | 2 | 0.4 – 0.5 | 100 |
| 261100306 | 10 | 75 | 4 | 0.4 – 0.5 | 100 |
| 261100606 | 10 | 100 | 6 | 0.4 – 0.5 | 100 |
| 261100803 | 12 | 75 | 6.5 | 0.4 – 0.5 | 100 |
| 261101105 | 12 | 100 | 9 | 0.4 – 0.5 | 100 |
| 261101302 | 14 | 130 | 16 | 0.4 – 0.5 | 100 |
| 261101602 | 16 | 130 | 20 | 0.5 – 0.6 | 100 |
| 261102101 | 16 | 160 | 25 | 0.5 – 0.6 | 100 |
| 261102307 | 18 | 180 | 35 | 0.5 – 0.6 | 100 |
| 261102607 | 20 | 150 | 39 | 0.5 – 0.6 | 100 |
| 261102804 | 20 | 180 | 45 | 0.5 – 0.6 | 100 |
| 261103303 | 25 | 150 | 60 | 0.6 – 0.7 | 50 |
| 261103603 | 25 | 200 | 80 | 0.6 – 0.7 | 50 |
| 261103809 | 30 | 200 | 110 | 0.7 – 0.8 | 50 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Funnel
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Funnel[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
Duran Funnels
DURAN funnels are used for filling and filtration duties. Duran funnels Round filter paper are available for the funnels. These are used for simple filtration. Their shape are analytical funnels can be used for rapid filtration duties. A slight vacuum is formed in the hollow chambers on the inside of the funnls which results in suction being applied to the liquid being filtered.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][vc_column_inner width="1/6"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="Short Stem Funnel" tab_id="shortstem"][vc_row_inner][vc_column_inner width="3/4"][vc_column_text]DURAN® funnel with short stem
Particular suited to use with hot or aggressive media thanks to the thermal shock and chemical resistance of DURAN®. Also available in soda-lime glass.
Typical applications: Decanting and filtration of substances.| Cat. No. | d(OD) (mm) | d1(OD) (mm) | h (mm) | h1 (mm) | Matching filter paper Ø (mm) | Remarks | Pack Unit |
| 213512308 | 35 | 6 | 60 | 35 | 45 – 55 | 10 | |
| 213512805 | 45 | 6 | 80 | 45 | 55 – 70 | Non-DIN ISO size. | 10 |
| 213513304 | 55 | 8 | 95 | 55 | 70 – 90 | 10 | |
| 213513801 | 70 | 8 | 125 | 70 | 110 – 125 | Non-DIN ISO size. | 10 |
| 213514103 | 80 | 10 | 140 | 80 | 125 – 150 | Non-DIN ISO size. | 10 |
| 213514609 | 100 | 10 | 180 | 100 | 150 – 185 | 10 | |
| 213515108 | 120 | 16 | 210 | 120 | 185 – 240 | Non-DIN ISO size. | 10 |
| 213515708 | 150 | 16 | 265 | 150 | 240 – 270 | 10 | |
| 213515905 | 180 | 20 | 290 | 150 | 270 – 320 | Non-DIN ISO size. | 1 |
| 213516104 | 200 | 26 | 325 | 175 | 320 – 385 | Non-DIN ISO size. | 1 |
| 213516601 | 250 | 30 | 370 | 175 | 385 – 400 | Non-DIN ISO size. | 1 |
| 213516901 | 300 | 30 | 409 | 175 | 500 | Non-DIN ISO size. | 1 |
| Cat. No. | d(OD) (mm) | d1(OD) (mm) | h (mm) | h1 (mm) | Matching filter paper Ø (mm) | Remarks | Pack Unit |
| 213533306 | 55 | 6 | 190 | 150 | 70 – 90 | 10 | |
| 213533803 | 70 | 6 | 200 | 150 | 110 – 125 | Non-DIN ISO size. | 10 |
| 213534105 | 80 | 6 | 210 | 150 | 125 – 150 | Non-DIN ISO size. | 10 |
| Cat. No. | d(OD) (mm) | d1(OD) (mm) | h (mm) | h1 (mm) | Pack Unit |
| 213543307 | 55 | 20 | 60 | 30 | 10 |
| 213543804 | 70 | 22 | 72 | 30 | 10 |
| 213544106 | 80 | 24 | 79 | 30 | 10 |
| 213544603 | 100 | 26 | 94 | 30 | 10 |
| 213545102 | 120 | 34 | 105 | 30 | 10 |
| 213545505 | 160 | 35 | 140 | 30 | 1 |
| 213546107 | 200 | 40 | 170 | 30 | 1 |
| Cat. No. | Capacity (ml) | d(OD) (mm) | d1(OD) (mm) | d2(OD) (mm) | h (mm) | Porosity | Pack Unit |
| 258540309 | 25 | 55 | 25 | 8 | 100 | 3 | 1 |
| 258540403 | 25 | 55 | 25 | 8 | 100 | 4 | 1 |
| Cat. No. | d(OD) (mm) | d1(OD) (mm) | h (mm) | h1 (mm) | Matching filter paper Ø (mm) | Pack Unit |
| 213313702 | 65 | 9 | 200 | 150 | 70 – 90 | 10 |
| 213314107 | 80 | 9 | 210 | 150 | 110 – 125 | 10 |
| 213314801 | 110 | 9 | 265 | 180 | 150 – 185 | 10 |
| Cat. No. | d(OD) (mm) | d1(OD) (mm) | h (mm) | h1 (mm) | Matching filter paper Ø (mm) | Pack Unit |
| 213523802 | 70 | 8 | 125 | 70 | 110 - 125 | 10 |
| 213524104 | 80 | 10 | 140 | 80 | 125 - 150 | 10 |
| 213524601 | 100 | 10 | 180 | 100 | 150 - 185 | 10 |
| 213525709 | 150 | 16 | 266 | 150 | 240 - 270 | 10 |
| 213526105 | 200 | 26 | 326 | 175 | 320 - 385 | 1 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
Duran® Petri Dish
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>Duran® Petri Dish[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]DURAN petri dishes are used in particular for biological and medcal work.
The better the surface of the glass, the better they are for use under the microscope. They must be flat, so that they can be stacked in the minium of space and without slipping. DUROPLAN petri dishes are transparent without distortion and optimally flat.[/vc_column_text][/vc_column][vc_column width="1/6"][/vc_column][vc_column width="1/6"][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title="DUROPLAN®" tab_id="DUROPLAN"][vc_row_inner][vc_column_inner width="2/3"][vc_column_text]
DUROPLAN® Petri Dish
lid and base have planar surfaces, and free from bubbles and streaks These Petri dishes are made from DURAN® borosilicate 3.3 glass using a special manufacturing process that permits the uniform distribution of agar and guarantees distortion-free observation. Typical applications: biological and clinical research, cultivation of microorganism, microscopy.| Cat. No. | d1(OD) (mm) | d2(OD) (mm) | h (mm) | h1 (mm) | Pack Unit |
| 217554101 | 60 | 54 | 22 | 20 | 10 |
| 217554307 | 80 | 74 | 22 | 20 | 10 |
| 217554607 | 100 | 94 | 17 | 15 | 10 |
| 217554804 | 100 | 94 | 22 | 20 | 10 |
| 217555106 | 120 | 114 | 22 | 20 | 10 |
| 217555303 | 150 | 143 | 32 | 30 | 10 |
STERIPLAN® Petri Dish
from Soda-lime Glass| Cat. No. | d(OD) (mm) | h (mm) | Pack Unit |
| 237553903 | 40 | 12 | 10 |
| 237554008 | 60 | 15 | 10 |
| 237554205 | 80 | 15 | 10 |
| 1184071 | 90 | 15 | 10 |
| 237554505 | 100 | 10 | 10 |
| 237554608 | 100 | 15 | 10 |
| 237554805 | 100 | 20 | 10 |
| 237555107 | 120 | 20 | 10 |
| 237555201 | 150 | 25 | 10 |
| 237555604 | 180 | 30 | 10 |
| 237555904 | 200 | 30 | 10 |
| 237556103 | 200 | 45 | 10 |
DURAN® Petri Dish
pressed Bottom of the base has three knobs for stability. Typical applications: biological and clinical work, preparation of agars, microscopy.| Cat. No. | d(OD) (mm) | h (mm) | Pack Unit |
| without sections | |||
| 217544606 | 100 | 15 | 10 |
| 217544803 | 100 | 20 | 10 |
| Half-sectional | |||
| 217504808 | 100 | 20 | 10 |
| Three-sectional | |||
| 217534802 | 100 | 20 | 10 |
| Four-sectional | |||
| 217524801 | 100 | 20 | 10 |
Related Products
[/vc_column_text][/vc_column][/vc_row]
DURAN® Pasteur Pipettes
[vc_row][vc_column][vc_column_text]Your Location: Main>Consumables>Glassware>DURAN® Pasteur Pipettes[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="2/3"][vc_column_text]
PASTEUR PIPETTES MADE OF BOROSILICATE GLASS 5.1
Due their material properties, Pasteur pipettes made of borosilicate glass 5.1 are a high-quality alternative to plastic pipettes and pipettes made of soda-lime glass. Features & Benefits- Glass pasteur pipettes with short and long drawn fine tip
- Made of clear borosilicate glass 5.1
- USP Type I neutral glass
- Pipettes conform to ISO 7712
- Inured to rapid temperature changes and chemical attack
- Very good chemical resistance to acidic and alkaline solutions
- Borosilicate glass 5.1 is more stable than soda-lime glass and therefore ideal for the transfer of hot liquids
- Virtually inert borosilicate glass minimizes interaction with the material and reduces the risk of sample contamination
- Rubber teat, made from natural rubber, can be ordered separately
- Pasteur pipettes are intended for one-time use in microbiological and serological laboratories
- Ideal for distributing aliquots quantities of liquid
| Cat. No. | l (mm) | Pipette diameter (mm) | Tip diameter (mm) | Volume (ml) | Pack Unit |
| 233301504 | 150 | 6.95 | approx. 1.1 | approx. 2 | 1000 = 4 x 250 |
| 233302303 | 230 | 6.95 | approx. 1.1 | approx. 2 | 1000 = 4 x 250 |
| Cat. No. | Description | d (mm) | h (mm) | Pack Unit |
| 292000102 | Rubber teat made from natural rubber | 15 | 35 | 100 |
[/vc_column_text][/vc_column][vc_column width="1/3"][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Back to Your Location[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
